S5 METAL ROOFING

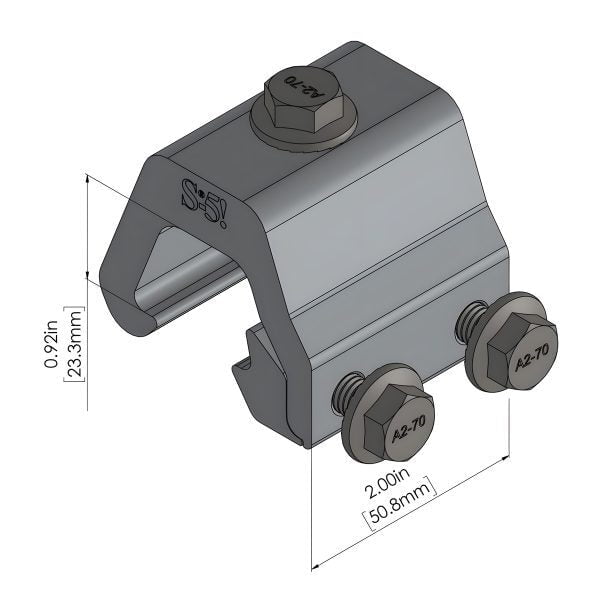

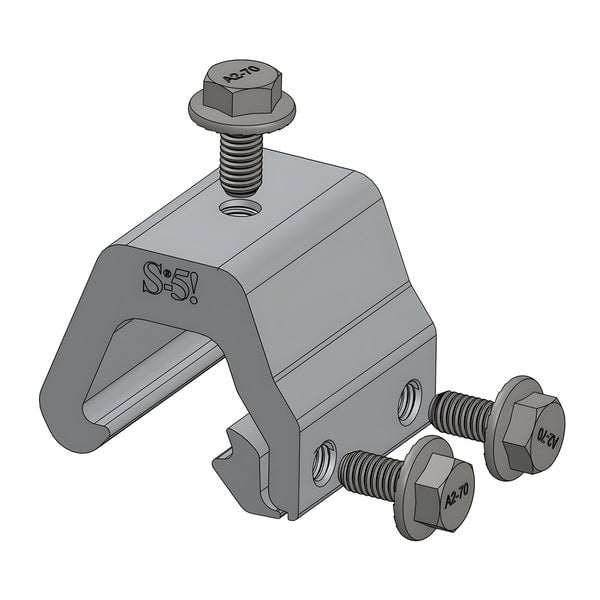

S-5-K Grip Seam Clamp

SKU: KG3M8200

Est Delivery between and .

Estimated Delivery Time 3-5 Working Days

The S-5-K Grip (“K” stands for KlipLok®), is designed to fit the KlipLok and similar profiles.

The following Inserts are recommended for this product

The K Grip eliminates the large moment arm typical of some competitive clamps, and its mounting bolt sits concentrically on the seam, increasing load resistance.

Unlike other S-5! clamps, the K Grip uses side-bolts rather than setscrews for attachment. The flanged-head bolts also prevent over-compression of the seam and eliminate the need for calibrated tensioning.

Specifications:

  • Developed for best suitability to Klip-Rib®, Klip-Lok® and other concealed-fix, snap-together profiles
  • Design utilizes multiple inserts (sold separately) to accommodate variations in brand-specific rib dimensions
  • Mounting bolt directly at center of seam (included)
  • Two side-bolts included





Inserts for the S-5-K Grip

Inserts Are Required with This Product

These inserts are associated with the seams below
LYSAGHT KLIP-LOK® 406
McElroy Metal Mirage
AEP Span Klip-Rib®
Metal Sales Clip-Loc
SpeedDeck® SpeedDeck®
Safintra Saflok 410
Safintra Saflok 700
Domico Dach®
And, other similar profile





The K Grip is also available in the smaller S-5-K Grip (Mini).

    brand S5
    Compatibility Developed for best suitability to Klip-Rib, Klip-Lok and other concealed-fix, snap-together profiles
    Hardware Mounting bolt directly at center of seam (included) Two side-bolts included
