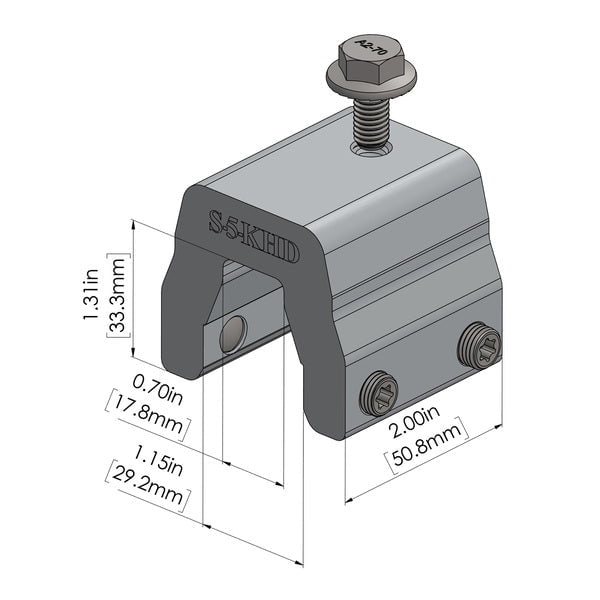

S-5-KHD Metal Roof Clamps

The S-5-KHD is the most heavy-duty and durable clamp in the S-5!® family. Designed primarily for new construction, this clamp fits the very distinctive profiles of the Lysaght® Klip-Lok® 406, McElroy Mirage, Metal Sales Clip-Loc, and AEP Span Klip-Rib®. This clamp features an insert that is placed on the intermediate seam for extra hold. Significantly stronger than anything else on the market for these profile types, this clamp is geared for snow retention systems and other heavy duty applications in new construction where holding strength is critical. More strength means fewer rows of assembly, and roof warranties remain intact with zero-penetration S-5! technology.

The insert placed inside the intermediate seam provides for a holding capacity of more than 3,000 pounds. Such incredible strength requires fewer rows of snow guards than any other option.

Specifications:

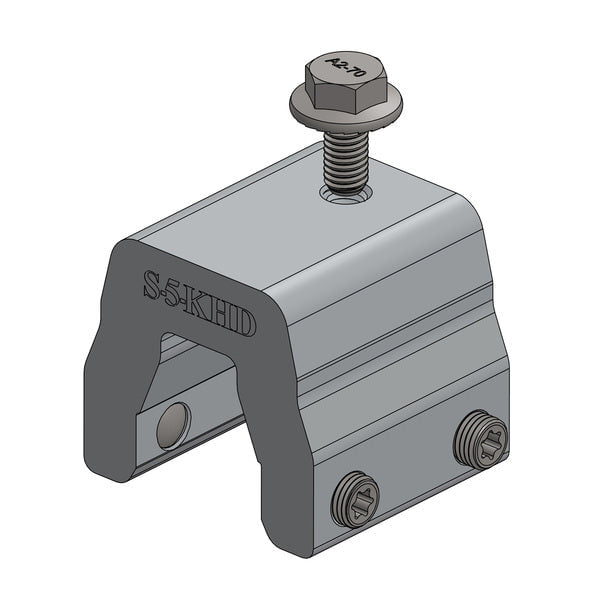

• Existing construction – S-5-KHD 3″ insert available - slides into the rib at the eave
• New construction – S-5-KHD 6″ insert available - installed as the roof goes on
• Can be used in conjunction with the S-5-K Grip Snow when more than one row of snow retention is needed on a retrofit project
• Four T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included
