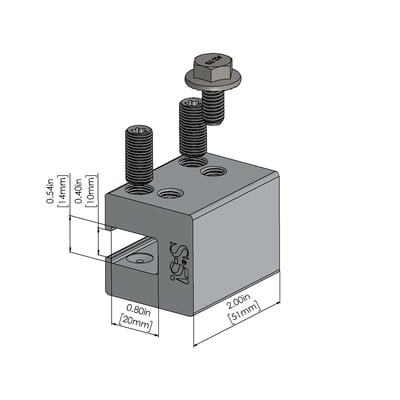

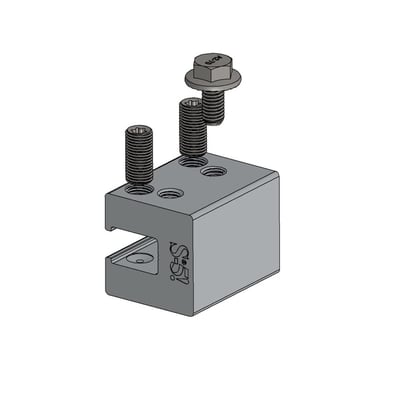

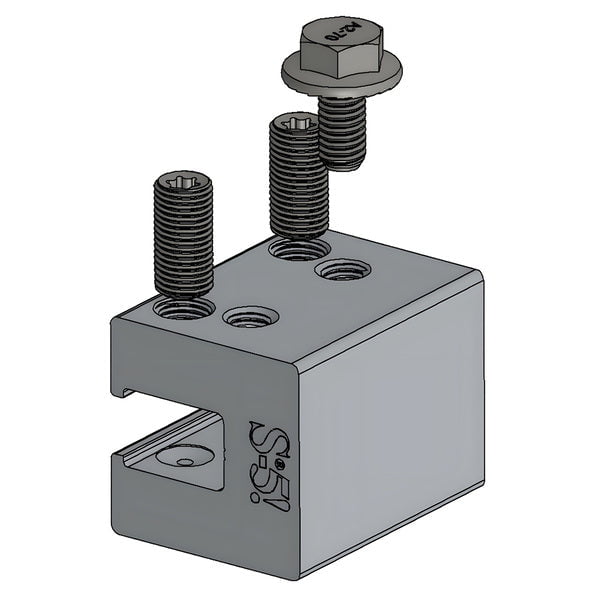

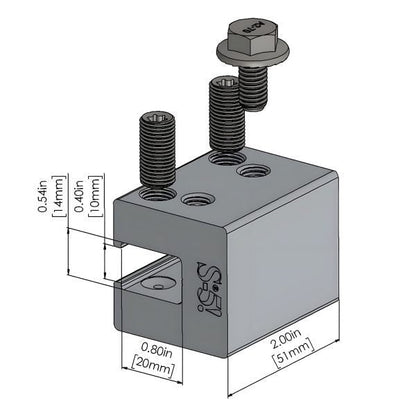

S-5-H90 Metal Roof Clamps

The S-5-H90 (“H” for Horizontal seam) is designed for standing seam panels with horizontal, single-folded seams.

For horizontal seam dimensions greater than 0.65” (16.5 mm), the H90 offers you a secure and cost-effective utility mounting attachment solution.The setscrews are top-down oriented. For horizontal (or “angle seams”) of .5” (13mm) or less, see the S-5-S.

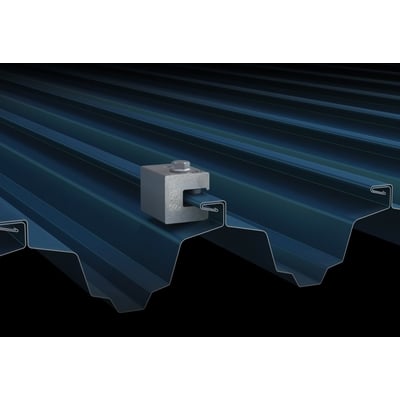

Turning the clamp 90 degrees so that the bolt hole side is facing up, slip the clamp on the seam and tighten the setscrews. After the clamp is installed, affix ancillary items using either of the two threaded bolt holes and bolt provided. The S-5-H90 is perfect for use with S-5! ColorGard® and X-Gard™ snow retention systems and other heavy-duty applications.

Specifications:

• Designed for standing seam panels with horizontal, single-folded seams
• Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
• Fits all standing seams the S-5-U fits horizontally and fits fully seamed profiles the S-5-H fits vertically - but is more cost-effective than either.
• Heavy-duty applications, such as snow retention
• Two T-30 Torx round-point setscrews - side installation - (Torx bit tip provided)
• One M8 bolt included

It is also available in the smaller S-5-H90 (Mini).
