S5 METAL ROOFING

S-5-Q Metal Roof Clamps

SKU: Q2M8238200T

Est Delivery between and .

Estimated Delivery Time Of 1-3 Working Days

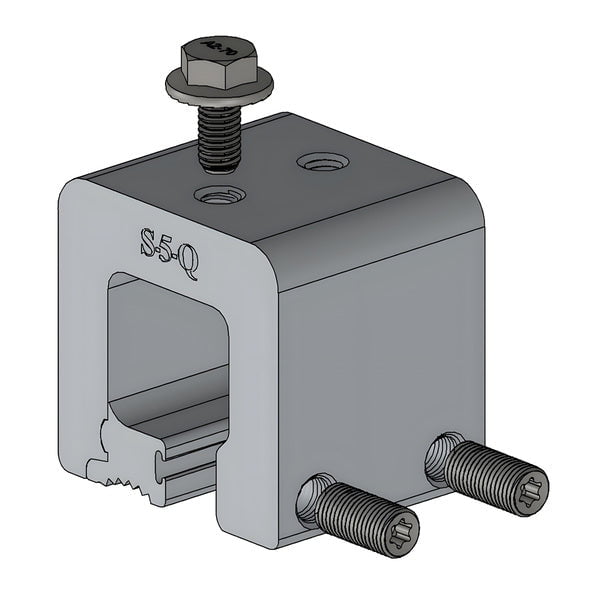

The S-5-Q clamp (“Q” represents the shape of the clamp) allows for the attachment of snow guards and other heavy-duty applications to metal roof panels featuring large, round (such as Zip-Rib®, BEMO, Kalzip®) and similar “bulb” seam configurations.

The Q will also fit smaller, “bulb-shaped” profiles (dia ≤ 0.75”; 19 mm) if the seam is not properly closed. (Also, check out the more cost-effective S-5-Z for these applications when seams are properly closed).

Specifications:

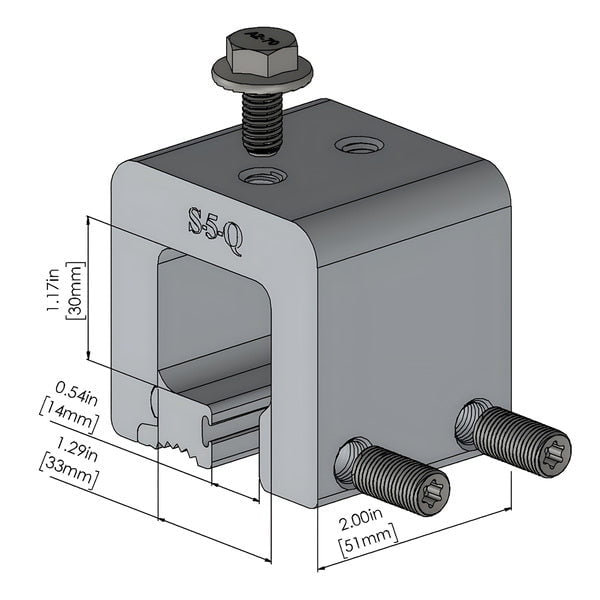

  • Fits all of the profiles the Z fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
  • Heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included



It is also available in the smaller S-5-Q (Mini).




    The S-5-Q clamp, with its distinct, smaller "bulb-shaped" design, ensures a snug fit on profiles not fully closed, ideal for secure installations on Double folded 16 & 20 oz copper standing seams.

    If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.










    S5 Lifetime Warranty

    S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.

    Application Heavy-duty applications, such as snow retention
    brand S5
    Compatibility Fits all of the profiles the Z fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
    Hardware Two T-30 Torx round-point setscrews (Torx bit tip provided) One M8 bolt included
