S5 METAL ROOFING

S-5-EF Metal Roof Clamps

SKU: EFL741381181T

Est Delivery between and .

Estimated Delivery Time 3-5 Working Days

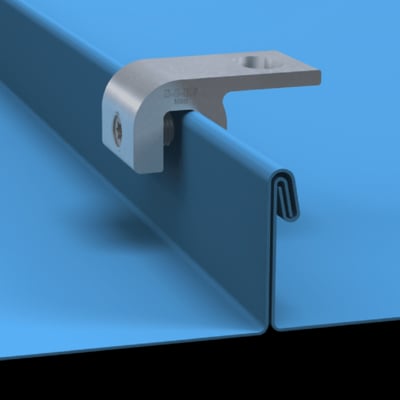

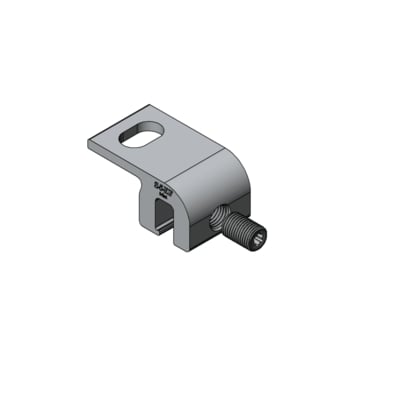

Sometimes you need a nut-and-bolt connection to the clamp rather than threading the bolt into the clamp directly. This is why we created the S-5-EF clamp  the right choice for a traditionally dimensioned, double- folded standing seam. The EF ( “EF” is for European Flange) is an economical, non-penetrating, standing seam metal roof (SSMR) clamp. With a slotted hole in the flange, the EF is ideal for the attachment of bottom-mount solar rails and a broad spectrum of other utility mountings. Stainless steel nuts and several bolt sizes are sold separately.

The EF has a single setscrew for medium or light-duty applications, such as solar or satellite dish mounting.

Specifications:

  • Flange design improves ease & versatility of attachment to bottom-mount rails and other nut-and-bolt connections

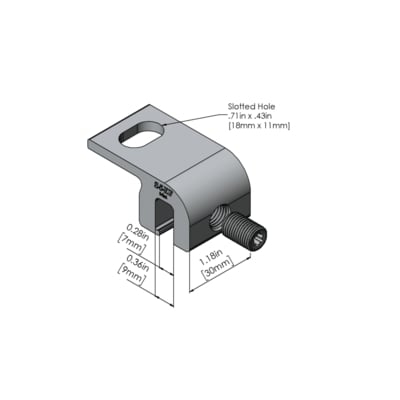

  • Slotted hole in flange provides adjustment for versatile utility mounting (bolt diameter up to 10 mm, ⅜”)
  • Compatible with Butler’s MR-24® and other double-folded, standing seam roofs
  • Light and medium-duty applications
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • Ideal for solar rail, roof walkway, HVAC and other mounting applications



      Application Light and medium-duty applications. Ideal for solar rail, roof walkway, HVAC and other mounting applications
      brand S5
      Compatibility Compatible with Butler’s MR-24 and other double-folded, standing seam roofs
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided)
