S5 METAL ROOFING

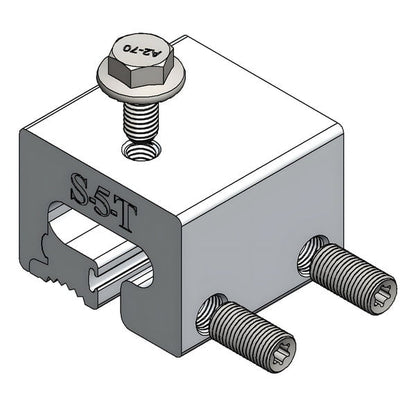

S-5-T Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$6.84
Sale price
$6.84
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-T Metal Roof Clamps

Product Code: T2M8238200T

The S-5-T is specifically designed for profiles featuring a “T”-shaped seam configuration.

Mount snow guards and other heavy-duty applications to profiles, such as McElroy Metal 138T & 238T, Centria SRS 2 & SRS 3, Imetco Series 300, GreenSpan RidgeLine, Metal Sales T-Armor and other similar profiles.

This non-penetrating, standing seam metal roof clamp can also be used on architectural “single-fold” or “angle- seam” profiles with a horizontal projection of 5/8” (15 mm) or less.

Specifications:

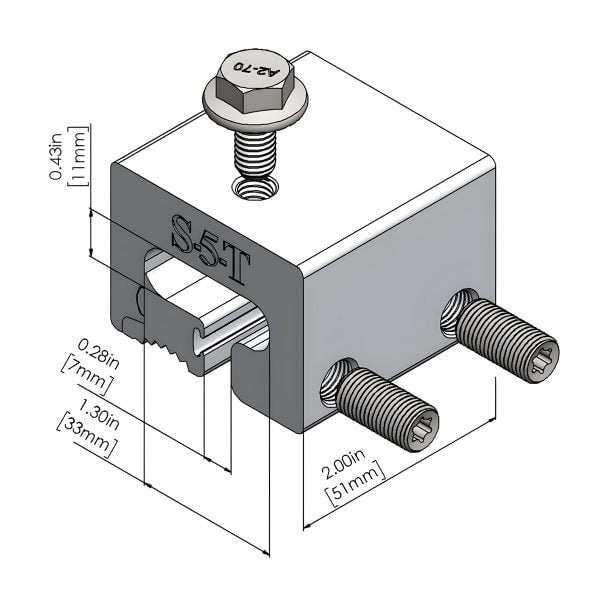

  • Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
  • Two-piece design allows the clamp to be placed over the top of the seam at any desired location
  • Fits architectural single-fold (or “angle-seam”) and horizontal seams with a horizontal dimension ≤ 5/8” (15 mm)
  • Heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included



It is also available in the smaller S-5-T (Mini).



    Application Heavy-duty applications, such as snow retention
    Brand S5
    Design Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
    Hardware Two T-30 Torx round-point setscrews (Torx bit tip provided) One M8 bolt included

    For information on delivery costs and more click here.


    Description

    The S-5-T is specifically designed for profiles featuring a “T”-shaped seam configuration.

    Mount snow guards and other heavy-duty applications to profiles, such as McElroy Metal 138T & 238T, Centria SRS 2 & SRS 3, Imetco Series 300, GreenSpan RidgeLine, Metal Sales T-Armor and other similar profiles.

    This non-penetrating, standing seam metal roof clamp can also be used on architectural “single-fold” or “angle- seam” profiles with a horizontal projection of 5/8” (15 mm) or less.

    Specifications:

    • Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
    • Two-piece design allows the clamp to be placed over the top of the seam at any desired location
    • Fits architectural single-fold (or “angle-seam”) and horizontal seams with a horizontal dimension ≤ 5/8” (15 mm)
    • Heavy-duty applications, such as snow retention
    • Two T-30 Torx round-point setscrews (Torx bit tip provided)
    • One M8 bolt included



    It is also available in the smaller S-5-T (Mini).





      Technical Specifications

      Application Heavy-duty applications, such as snow retention
      Brand S5
      Design Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
      Hardware Two T-30 Torx round-point setscrews (Torx bit tip provided) One M8 bolt included
