S5 METAL ROOFING

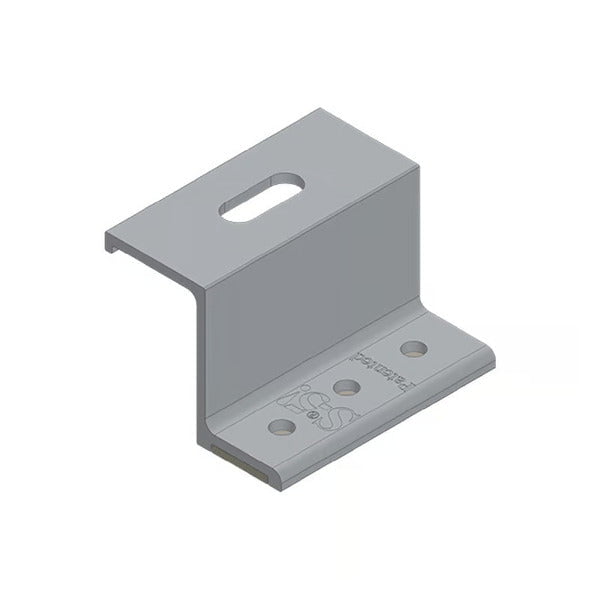

S5 VersaBracket 67

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$4.45
Sale price
$4.45
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S5 VersaBracket 67

Product Code: VBP6732613752875

The VersaBracket is a bottom-fixed, metal roof bracket specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles. VersaBracket is compatible with the S-5-PVKIT® for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well.

VersaBracket 67 fasten through the roof, into the deck or structure using fasteners specifically designed to outlive the roof (fasteners sold separately for the appropriate substrate).

Specifications:

  • VersaBracket 67: 2.65” (67 mm)
  • Horizontal mounting face comes with 1” (25 mm) slot on top for 8 mm bolted attachments
  • Factory-applied, non-curing, 60-yr butyl sealant–just peel release paper and fasten
  • Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression
  • Design uses a “triple-seal” for watertight assurance



Note: We do NOT recommend the use of VersaBracket for side-bolted rail with L-Foot. For these applications, please see ProteaBracket, VersaGard, or SolarFoot



Brand S5
Compatibility Compatible with the S-5-PVKIT for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well
Design Specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles

For information on delivery costs and more click here.


Description

The VersaBracket is a bottom-fixed, metal roof bracket specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles. VersaBracket is compatible with the S-5-PVKIT® for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well.

VersaBracket 67 fasten through the roof, into the deck or structure using fasteners specifically designed to outlive the roof (fasteners sold separately for the appropriate substrate).

Specifications:

  • VersaBracket 67: 2.65” (67 mm)
  • Horizontal mounting face comes with 1” (25 mm) slot on top for 8 mm bolted attachments
  • Factory-applied, non-curing, 60-yr butyl sealant–just peel release paper and fasten
  • Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression
  • Design uses a “triple-seal” for watertight assurance



Note: We do NOT recommend the use of VersaBracket for side-bolted rail with L-Foot. For these applications, please see ProteaBracket, VersaGard, or SolarFoot





Technical Specifications

Brand S5
Compatibility Compatible with the S-5-PVKIT for rail-less (direct-attach™) or bottom-bolted rail for solar mounting. It can be used for other utility mounting as well
Design Specifically designed for mounting S-5! ColorGard with VersaClip and solar PV to exposed‑fastened profiles
