Versagard

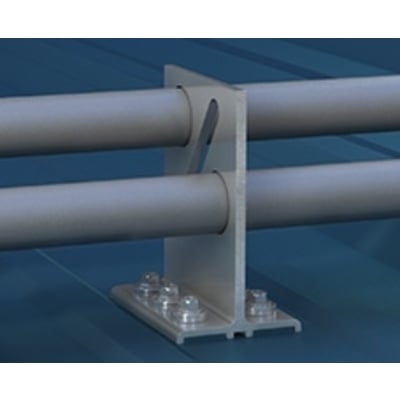

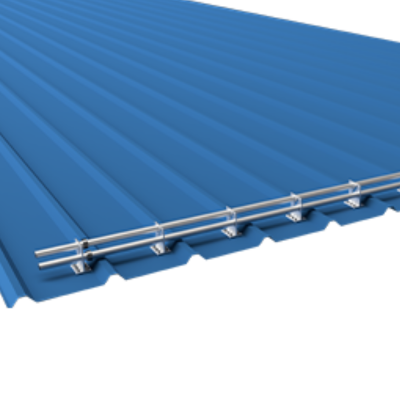

VersaGard is a metal roof bracket used for both PV installation and snow retention on exposed-fastened metal roofs.

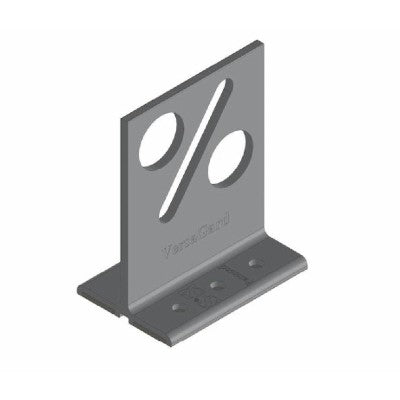

VersaGard functions as an L-Foot and mounting base in one component for PV rail mounting. The bracket is specifically designed with a factory-applied, butyl sealant offering a long-term service life, free from UV degradation, drying and cracking. No unreliable, field-applied caulking is needed.

Used with side-bolted rail systems, VersaGard can be installed either parallel or perpendicular to slope for portrait or landscape module orientation.

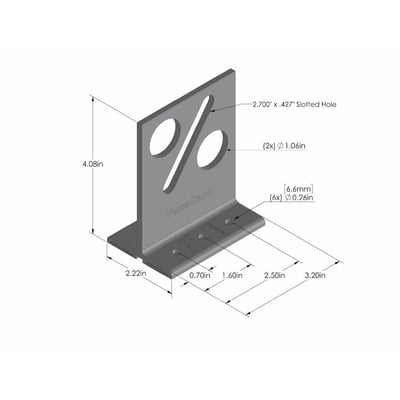

The diagonal slot design of the bracket makes 1.75” (45 mm) of height adjustability a snap. Bolts and nuts are offered separately with common bolt sizes.

Wire management holes are also provided. The circular holes in the vertical part of the bracket support up to 1” (25 mm) conduit.

Specifications

• Use in lieu of an L-Foot
• Use with any side-mount rail system
• Install either parallel or perpendicular to slope
• Diagonal “slot” provides 1-¾” (45 mm) of height adjustability via the use of 3/8″ (9.5 mm), M8 or M10 bolts
• Integral reservoir prevents over- compression and preserves butyl seal by preventing UV exposure
• Up to six points of attachment
• Must attach to deck or structure (i.e., wood decking, wood or steel purlins, or trusses)
• Select the appropriate S-5! fastener (sold separately) for steel or wood attachments
