S5 METAL ROOFING

SolarFoot

Product Code: LPSM812548MM200

Est Delivery between and

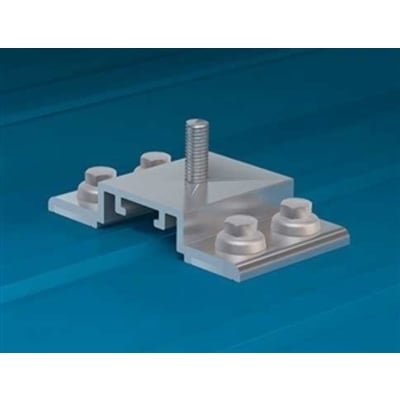

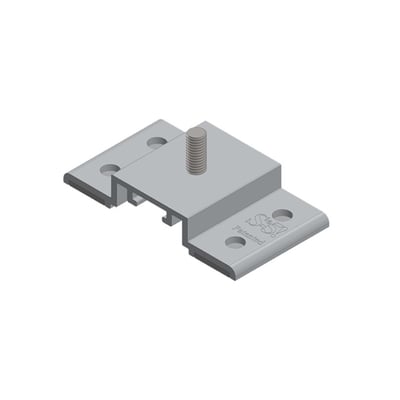

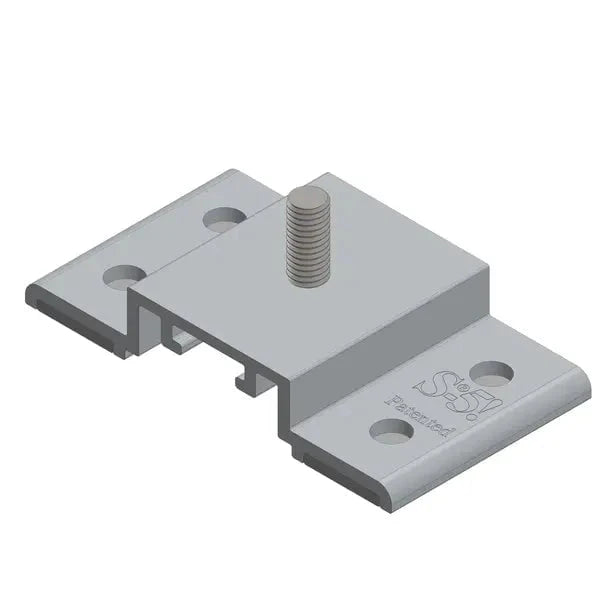

The S-5! SolarFoot is a simple, cost-effective pedestal for L-Foot attachment of rail-mounted solar PV. The bracket can be used to mount any L-foot to exposed-fastened metal roofs, such as AG-panel or R-Panel.

Designed to straddle minor striations in your roof panel for attachment into decking or structure, SolarFoot can be fastened into a variety of substrates, including the wood deck, wood timber purlins or steel purlins.

Benefits

  • Designed for exposed-fastened metal roof solar mounting attached via L-Foot and rails
  • Compatible with all rail manufacturer’s L-Foot components
  • Attaches directly to structure or deck for optimal holding strength
  • Proper sealant selection never left to chance; no messy or risky field application of sealant
  • Low center of gravity reduces moment arm commonly associated with L-Foot/rail solar racking
  • Stainless integrated stud and serrated, hex-flange nut secure the L-Foot into position



Key Features

  • Compatible with all L-Foot products
  • Secure rail-mounted systems to trapezoidal roof profiles
  • Integrated reservoir prevents over-compressing seal
  • Utilizes either two or four fasteners (sold separately), depending on need
  • Must attach through the roof into either deck or structure using S-5! tested fasteners to achieve published holding strength

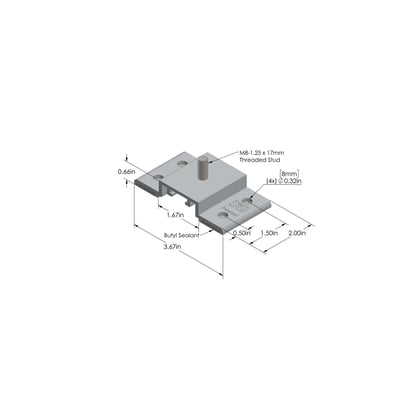

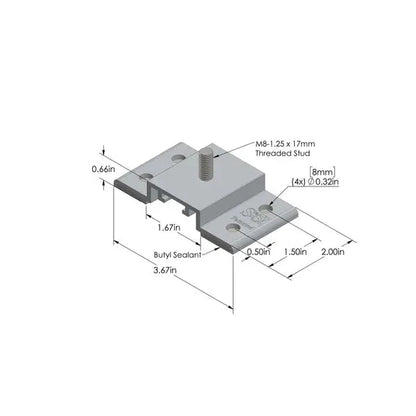

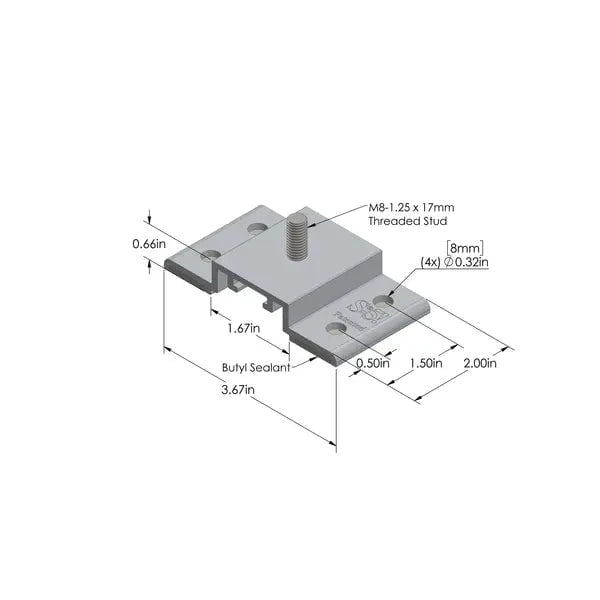

  • Integral M8 stud and hex-flange nut included



brand S5
Compatibility Compatible with all rail manufacturer’s L-Foot components
Design Designed for exposed-fastened metal roof solar mounting attached via L-Foot and rails
Hardware Integral M8 stud and hex-flange nut included
