S5 METAL ROOFING

S-5-Z Mini Metal Roof Clamps

Product Code: ZM1M81381181_NBT

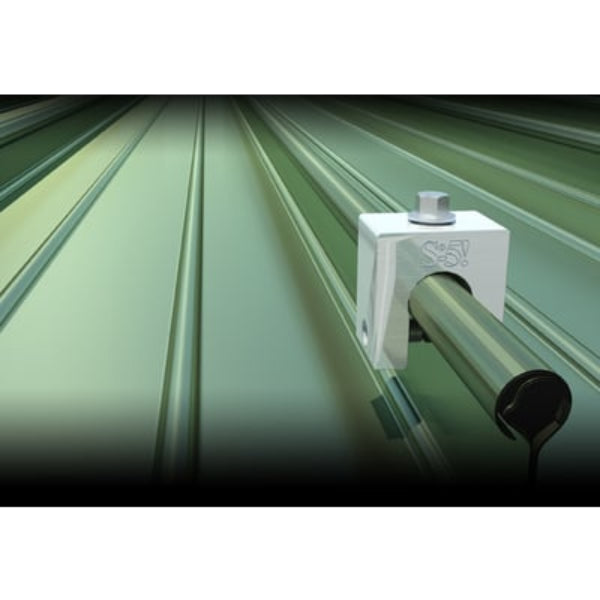

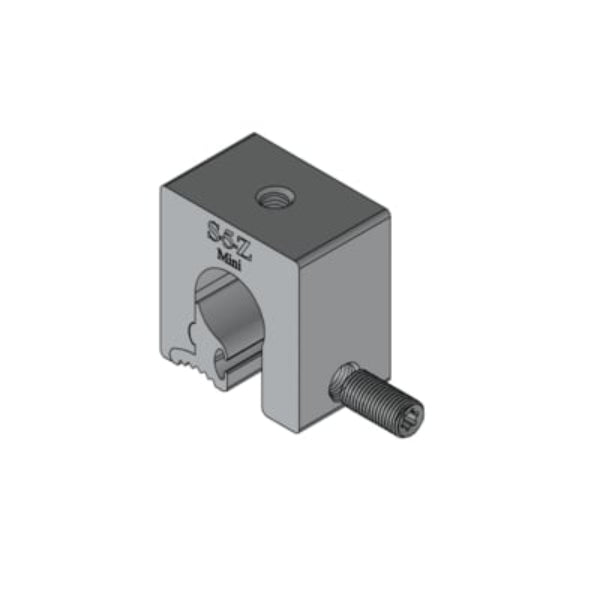

The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Specifications:

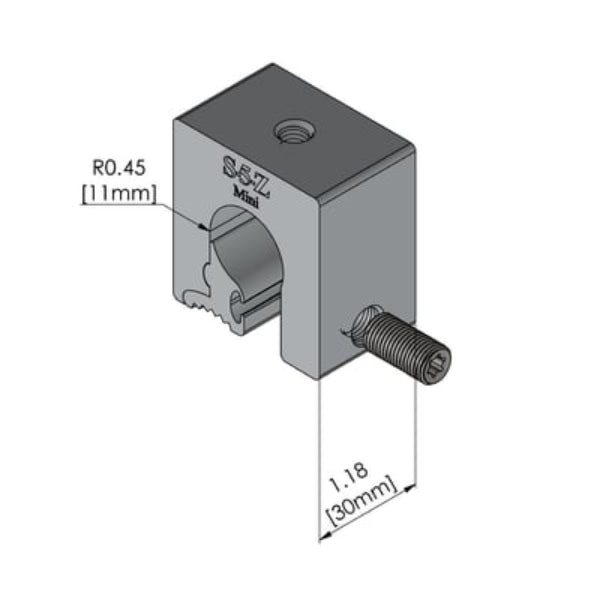

  • Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
  • Two-piece clamp design means you can easily install anywhere along
    the rib
  • Light and medium-duty applications, such as utility mounting
  • Smaller than the standard S-5-Z
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included



    Application Light and medium-duty applications, such as utility mounting
    Brand S5
    Design Specially designed to fit Zip-Rib, BEMO, Kalzip and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    For information on delivery costs and more click here.


    Description

    The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

    The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.

    All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

    Specifications:

    • Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
    • Two-piece clamp design means you can easily install anywhere along
      the rib
    • Light and medium-duty applications, such as utility mounting
    • Smaller than the standard S-5-Z
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included





      Technical Specifications

      Application Light and medium-duty applications, such as utility mounting
      Brand S5
      Design Specially designed to fit Zip-Rib, BEMO, Kalzip and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
