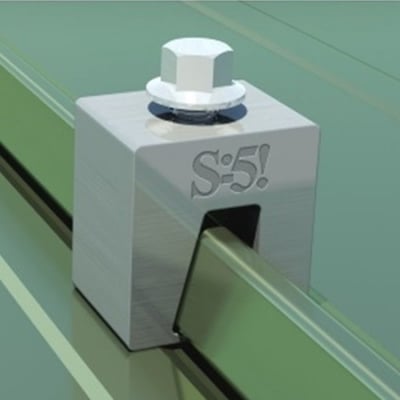

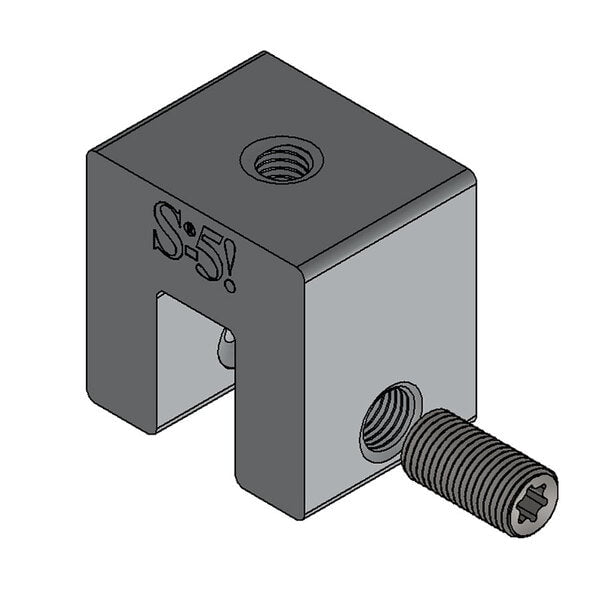

S-5-S Mini Metal Roof Clamps
S-5-S Mini NB Clamps - Full Range
S-5-S Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-S Mini Metal Roof Clamps
  • Load image into Gallery viewer, S-5-S Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-S Mini NB Clamps - Full Range
S5 METAL ROOFING

S-5-S Mini Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$3.35
Sale price
$3.35
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-S Mini Metal Roof Clamps

Product Code: SM1M82381181_NBT

The S Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Choose the S (or its Mini) to mount walkways, snow guards, solar panels and other mechanical equipment to snap-lock and some single-fold metal roof profiles. Although the S-5-U will work on these profiles, the S is a better fit and lower-cost solution.

Specifications:

  • Use on vertical snap-together profiles

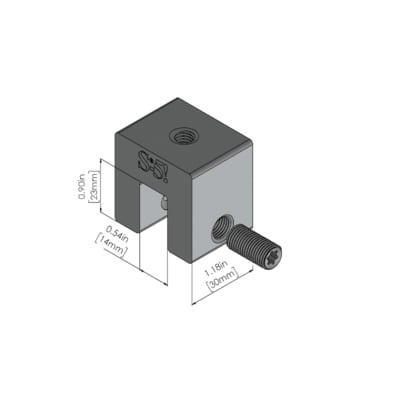

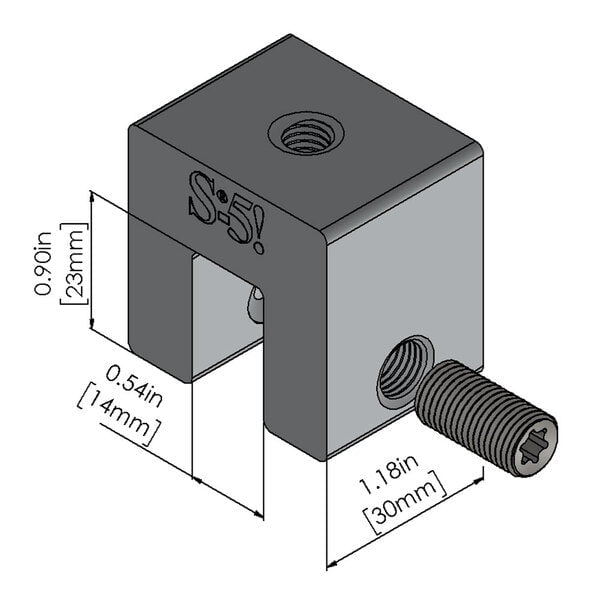

  • Use on single-folded with horizontal projection (horizontal seams) under ≤ 0.54” (13 mm)
  • Utility mounting and other light and medium-duty applications
  • Smaller than the standard S-5-S
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included



    Application Utility mounting and other light and medium-duty applications
    Brand S5
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    Select Brand / Product Range

    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    $80 Per Order
    Location Based - Calculated at checkout
    FREE DELIVERY
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    FREE DELIVERY
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    $60 Per Order
    $15 Per Order
    Location Based - Calculated at checkout
    FREE DELIVERY
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    $60 Per Roll
    60" and 72" are calculated at checkout
    Location Based - Calculated at checkout
    Location Based - Calculated at checkout
    FREE DELIVERY
    Location Based - Calculated at checkout

    Standard Delivery

    All standard orders are subject to a minimum $60 delivery charge once the delivery location is within a 100 mile radius of the supplier. Special order items marked with a "special order" badge may incur alternative delivery charges (see table below). The vast majority of orders (over 90%) are dispatched in 5 - 10 working days. A signature may be required on receipt.  All deliveries are completed by our fleet of partner trucks and distributors. In some remote areas of the US a long distance charge may apply for shipping. This charge will be notified to the customer and agreed before any payment is made. Also this condition may apply for orders whereby the movement of stock is required from one depot to another across long distances or off shore orders. Generally the long distance charge may be requested on orders exceeding 100 miles from our closest depot. Some products such as Spray Foam insulation is a hazardous material and is subject to a delivery charge or bulk buy products are subject to additional delivery charges due to the massive discounts that are available. This is highlighted at the checkout stage of your order.


    Delivery Charges

    Roofing4US will in most cases email the customer prior to delivery informing the customer of an eta. This is an eta only and is subject to change without notice to the customer. Roofing4US will endeavor to inform the customer of a delay in shipment by email if this may occur.

    Deliveries will be notified to the customer by email. If the delivery date does not suit please reply by email a delivery date that suits you. Roofing4US does not accept liability for late deliveries or act of god circumstances that may cause your order to arrive on an alternative delivery time slot or date. Please note deliveries are not made on weekends. The customer is responsible in ensuring that there is an able bodied person at the shipping location on the day of delivery to assist with off loading. Delivery times can be given on the morning of delivery if required. All deliveries are to curb side only and any further handling by our delivery partners is at the discretion of our partner drivers.


    SHIPPING PROTECTION

    https://roofing4us.com/pages/shipping-protection


    Description

    The S Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

    All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

    Choose the S (or its Mini) to mount walkways, snow guards, solar panels and other mechanical equipment to snap-lock and some single-fold metal roof profiles. Although the S-5-U will work on these profiles, the S is a better fit and lower-cost solution.

    Specifications:

    • Use on vertical snap-together profiles
    • Use on single-folded with horizontal projection (horizontal seams) under ≤ 0.54” (13 mm)
    • Utility mounting and other light and medium-duty applications
    • Smaller than the standard S-5-S
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included





      Technical Specifications

      Application Utility mounting and other light and medium-duty applications
      Brand S5
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
