S5 METAL ROOFING

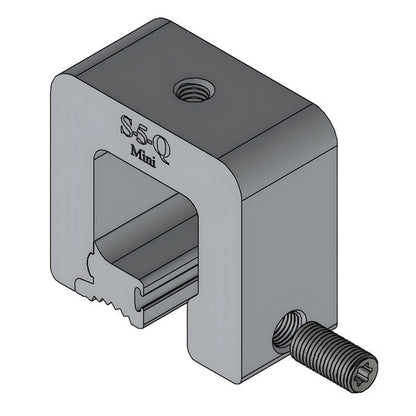

S-5-Q Mini Metal Roof Clamps

SKU: QM1M8381181_NBT-10

Est Delivery between and .

Estimated Delivery Time Of 1-3 Working Days

The Q Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

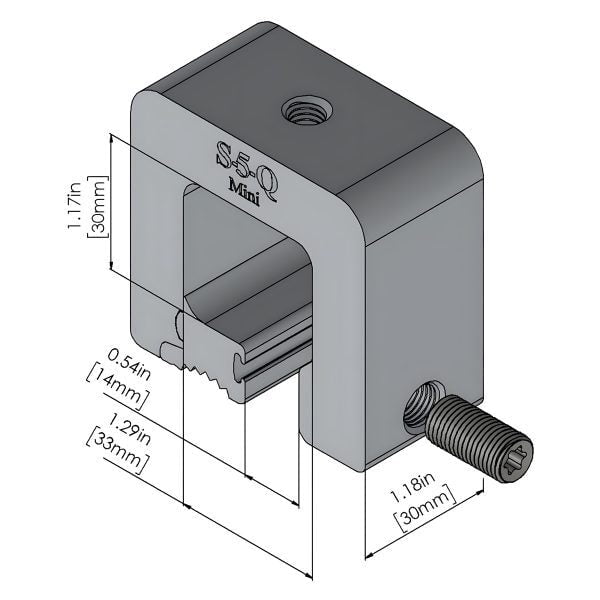

The S-5-Q Mini is a bit shorter than the S-5-Q and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

Specifications:

  • Fits all of the profiles the Z Mini fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
  • Light and medium-duty applications, such as solar and utility mounting
  • Smaller than the standard S-5-Q
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included




    S5 Lifetime Warranty

    S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.

    Application Light and medium-duty applications, such as solar and utility mounting
    brand S5
    Compatibility Fits all of the profiles the Z Mini fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
