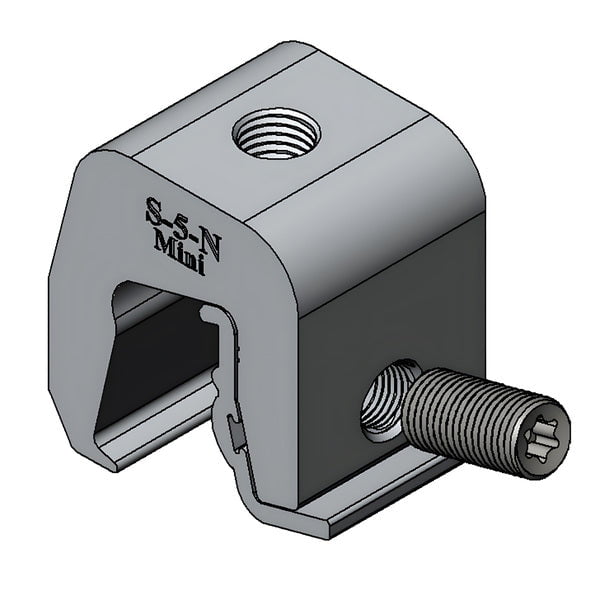

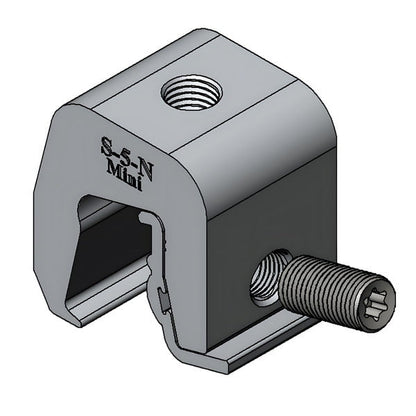

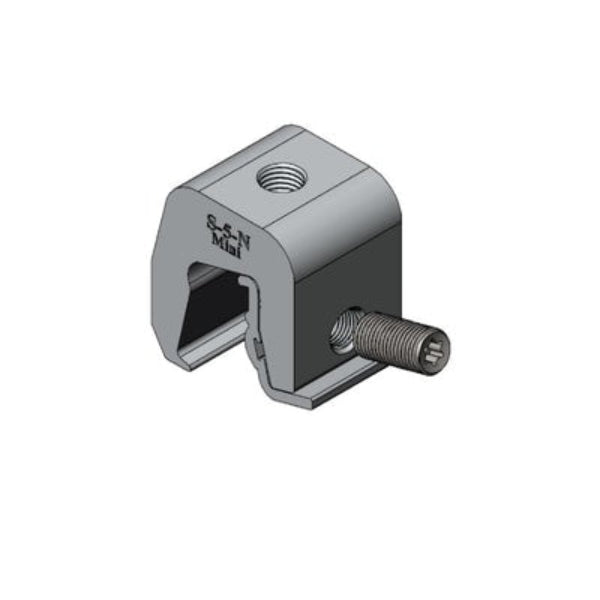

S-5-N Mini Metal Roof Clamps
S-5-N Mini Metal Roof Clamps
  • Load image into Gallery viewer, S-5-N Mini Metal Roof Clamps
  • Load image into Gallery viewer, S-5-N Mini Metal Roof Clamps
S5 METAL ROOFING

S-5-N Mini Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$4.35
Sale price
$4.35
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-N Mini Metal Roof Clamps

Product Code: NGM1M81381181_NBT

The N Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The S-5-N Mini offers correct fit to the same profiles as the standard S-5-N but is shorter and has one setscrew rather than two. The Mini is ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, lightning protection systems, antennas, rooftop lighting, conduit and condensate lines.

Specifications:

  • Angled setscrews for easy installation; no special tools required
  • Special design for “nail-flange” SSR

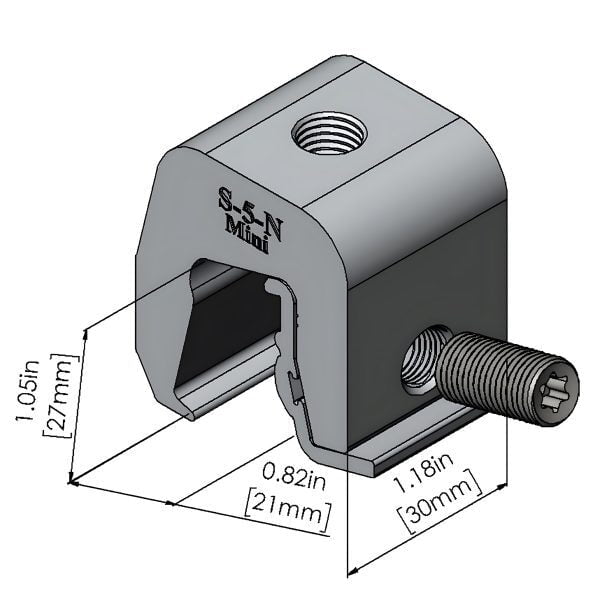

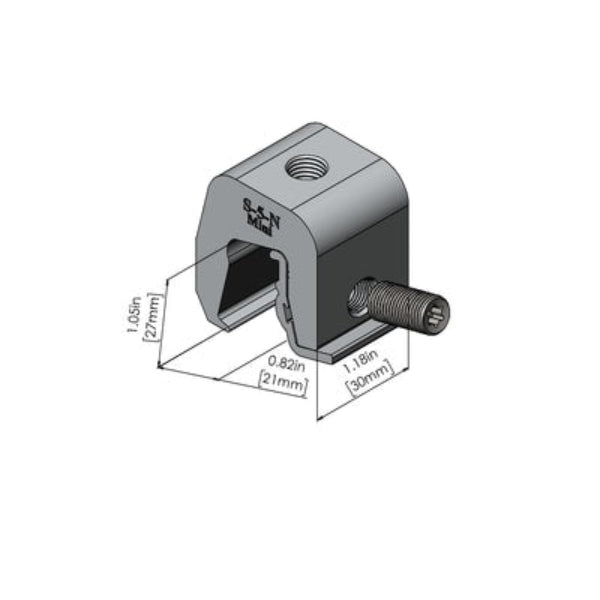

  • Clamp insert facilitates best-fit installation; no special tools required profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm) without damage to panel seam
  • Use for medium or light-duty applications, such as solar or satellite dish mounting
  • Smaller than the standard S-5-N
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included



    Application Used for medium or light-duty applications, such as solar or satellite dish mounting
    Brand S5
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    For information on delivery costs and more click here.


    Description

    The N Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

    The S-5-N Mini offers correct fit to the same profiles as the standard S-5-N but is shorter and has one setscrew rather than two. The Mini is ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, lightning protection systems, antennas, rooftop lighting, conduit and condensate lines.

    Specifications:

    • Angled setscrews for easy installation; no special tools required
    • Special design for “nail-flange” SSR
    • Clamp insert facilitates best-fit installation; no special tools required profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm) without damage to panel seam
    • Use for medium or light-duty applications, such as solar or satellite dish mounting
    • Smaller than the standard S-5-N
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included





      Technical Specifications

      Application Used for medium or light-duty applications, such as solar or satellite dish mounting
      Brand S5
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
