S-5-N 1.5 Mini NB Clamps - Full Range
S-5-N 1.5 Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-N 1.5 Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-N 1.5 Mini NB Clamps - Full Range
S5 METAL ROOFING

S-5-N 1.5 Mini Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$4.50
Sale price
$4.50
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-N 1.5 Mini Metal Roof Clamps

Product Code: NM1501M81381181_NBT

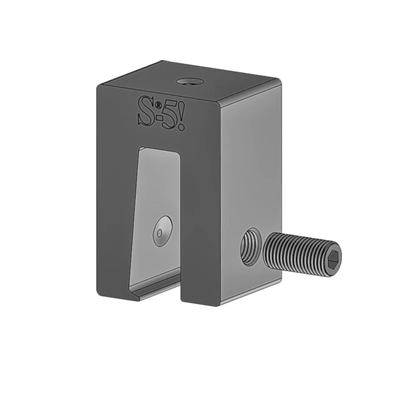

The N 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The S-5-N 1.5 Mini is a bit shorter than the S-5-N 1.5 and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

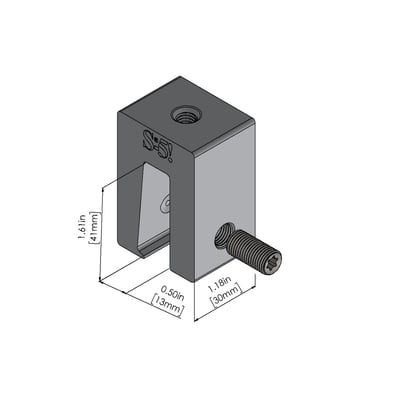

Specifications:

  • Designed for use on 1.5” (38 mm) nail strip metal roof profiles
  • Angled wall with nose permits the clamp to engage the triangular-shaped profiles during the installation process
  • For light and medium-duty applications, such as solar and other utilities
  • Smaller than the standard S-5-N 1.5
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included



    Application For light and medium-duty applications, such as solar and other utilities
    Brand S5
    Design Designed for use on 1.5” (38 mm) nail strip metal roof profiles
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    For information on delivery costs and more click here.


    Description

    The N 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

    The S-5-N 1.5 Mini is a bit shorter than the S-5-N 1.5 and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

    Specifications:

    • Designed for use on 1.5” (38 mm) nail strip metal roof profiles
    • Angled wall with nose permits the clamp to engage the triangular-shaped profiles during the installation process
    • For light and medium-duty applications, such as solar and other utilities
    • Smaller than the standard S-5-N 1.5
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included





      Technical Specifications

      Application For light and medium-duty applications, such as solar and other utilities
      Brand S5
      Design Designed for use on 1.5” (38 mm) nail strip metal roof profiles
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
