S-5-H90 Mini Metal Roof Clamps
S-5-H90 Mini NB Clamps - Full Range
S-5-H90 Mini NB Clamps - Full Range

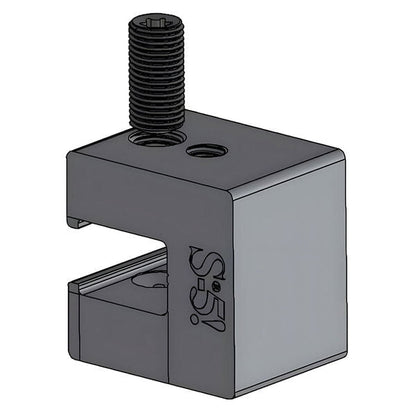

  • Load image into Gallery viewer, S-5-H90 Mini Metal Roof Clamps

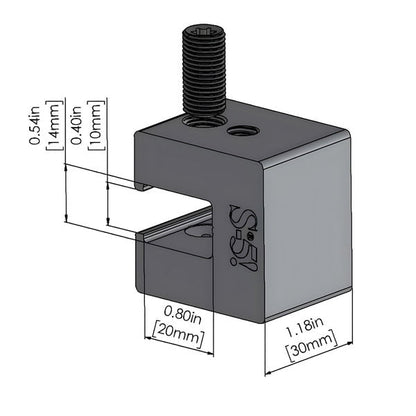

  • Load image into Gallery viewer, S-5-H90 Mini NB Clamps - Full Range

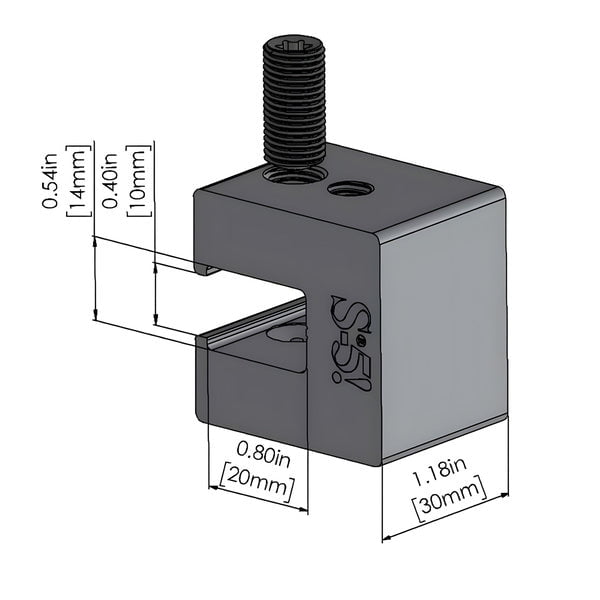

  • Load image into Gallery viewer, S-5-H90 Mini NB Clamps - Full Range
The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$4.06
Sale price
$4.06
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-H90 Mini Metal Roof Clamps

SKU: H90M1M81381181_NBT

Est Delivery between and .

Estimated Lead Time 2-3 Working Days

The S-5-H90 Mini is a bit shorter than the S-5-H90 and has one setscrew and one threaded bolt hole rather than two. The H90 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.

Specifications:

  • Designed for standing seam panels with horizontal, single-folded seams
  • Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
  • Fits all standing seams the S-5-U fits horizontally, and fits fully seamed profiles the S-5-H fits vertically  - but is more cost-effective than either.
  • One T-30 Torx round-point setscrew - side installation - (Torx bit tip provided)
  • No M8 bolt included
    Application For lighter-duty attachments where Herculean holding strength is not required
    brand S5
    Compatibility Fits all standing seams the S-5-U fits horizontally, and fits fully seamed profiles the S-5-H fits vertically
    Design Designed for standing seam panels with horizontal, single-folded seams
    Hardware One T-30 Torx round-point setscrew - side installation - (Torx bit tip provided) No M8 bolt included
