S-5-H Mini Metal Roof Clamps
S-5-H Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-H Mini Metal Roof Clamps
  • Load image into Gallery viewer, S-5-H Mini NB Clamps - Full Range
S5 METAL ROOFING

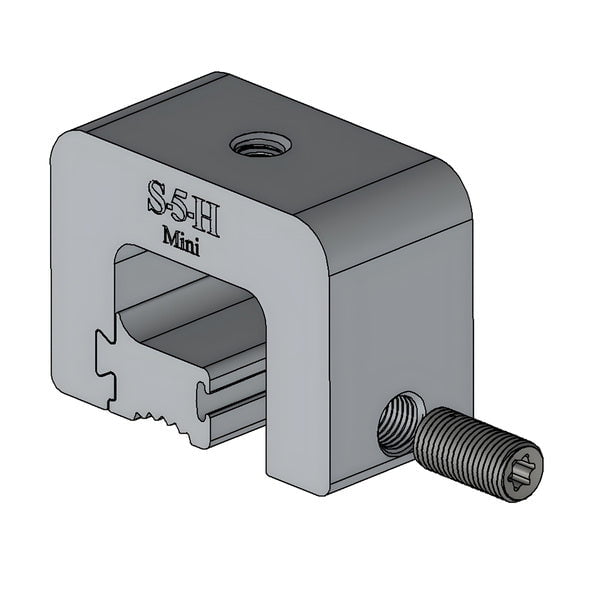

S-5-H Mini Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$7.22
Sale price
$7.22
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-H Mini Metal Roof Clamps

Product Code: HM1M82381181_NBT

The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.



Specifications:

  • For standing seam panels with horizontal seam orientation (single-folded)
  • Accommodates roof panels with a horizontal seam that is not fully closed
  • Two-piece design allows attachment anywhere along length of seam

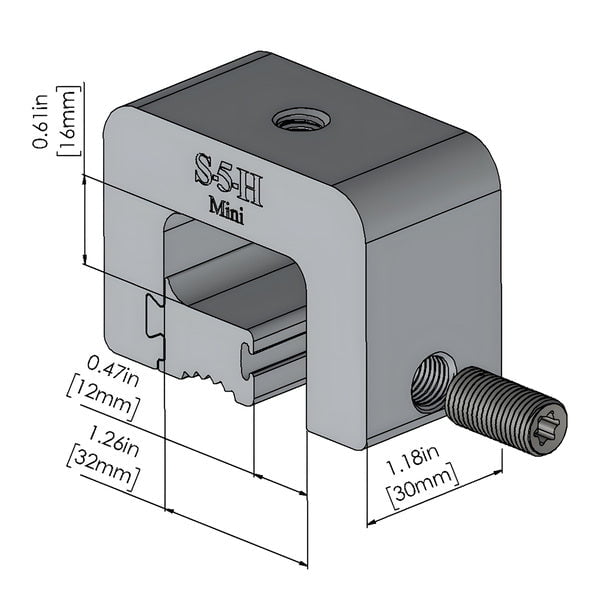

  • Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
  • Smaller than the standard S-5-H
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included



    Brand S5
    Compatibility For standing seam panels with horizontal seam orientation (single-folded)
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    For information on delivery costs and more click here.


    Description

    The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.



    Specifications:

    • For standing seam panels with horizontal seam orientation (single-folded)
    • Accommodates roof panels with a horizontal seam that is not fully closed
    • Two-piece design allows attachment anywhere along length of seam
    • Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
    • Smaller than the standard S-5-H
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included





      Technical Specifications

      Brand S5
      Compatibility For standing seam panels with horizontal seam orientation (single-folded)
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
