S-5-E Mini Metal Roof Clamps
S-5-E Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-E Mini Metal Roof Clamps
  • Load image into Gallery viewer, S-5-E Mini NB Clamps - Full Range
S5 METAL ROOFING

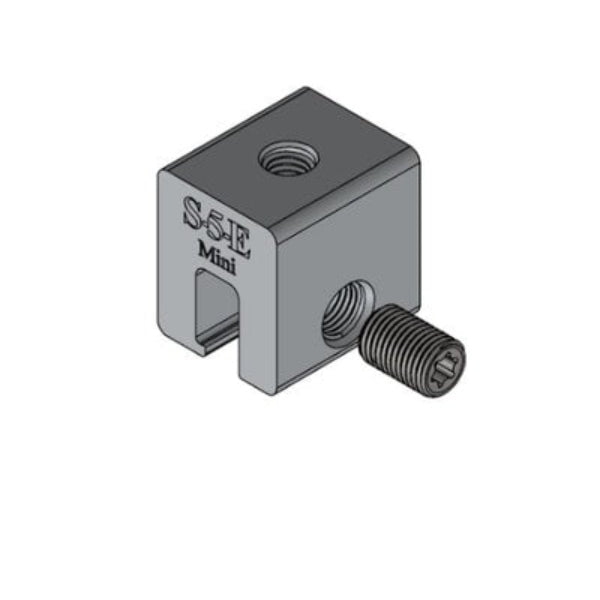

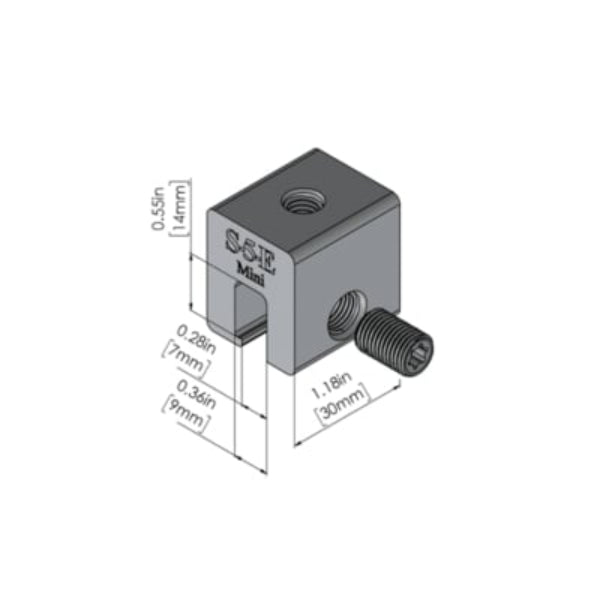

S-5-E Mini Metal Roof Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$3.21
Sale price
$3.21
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-E Mini Metal Roof Clamps

Product Code: EM1M81381181_NBT

The S-5-E Mini is a bit shorter than the S-5-E and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment

The E Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

Specifications:

  • Comparable strength to S-5-U & V Minis but at a lower cost
  • Compatible with Butler’s MR-24® and other double-folded, standing seam metal roof
  • Light and medium-duty applications, such as utility mounting
  • Ideal for solar mounting applications
  • Smaller than the standard S-5-E
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
    Application Light and medium-duty applications, such as utility mounting. Ideal for solar mounting applications
    Brand S5
    Compatibility Compatible with Butler’s MR-24 and other double-folded, standing seam metal roof
    Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included

    For information on delivery costs and more click here.


    Description

    The S-5-E Mini is a bit shorter than the S-5-E and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment

    The E Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

    Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

    Specifications:

    • Comparable strength to S-5-U & V Minis but at a lower cost
    • Compatible with Butler’s MR-24® and other double-folded, standing seam metal roof
    • Light and medium-duty applications, such as utility mounting
    • Ideal for solar mounting applications
    • Smaller than the standard S-5-E
    • One T-30 Torx round-point setscrew (Torx bit tip provided)
    • No M8 bolt included


      Technical Specifications

      Application Light and medium-duty applications, such as utility mounting. Ideal for solar mounting applications
      Brand S5
      Compatibility Compatible with Butler’s MR-24 and other double-folded, standing seam metal roof
      Hardware One T-30 Torx round-point setscrew (Torx bit tip provided) No M8 bolt included
