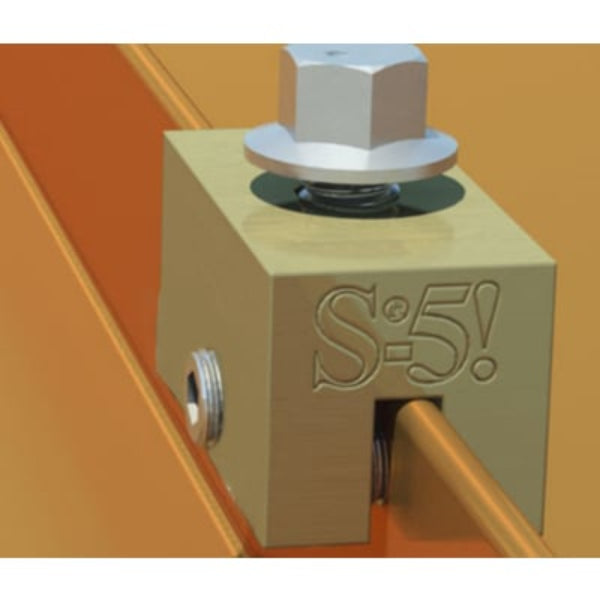

S-5-B Brass Metal Roof Mini Clamps
S-5-B Mini NB Clamps - Full Range
S-5-B Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-B Brass Metal Roof Mini Clamps
  • Load image into Gallery viewer, S-5-B Mini NB Clamps - Full Range
  • Load image into Gallery viewer, S-5-B Mini NB Clamps - Full Range
S5 METAL ROOFING

S-5-B Brass Metal Roof Mini Clamps

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$14.79
Sale price
$14.79
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

S-5-B Brass Metal Roof Mini Clamps

Product Code: BM1M81381181_NBT

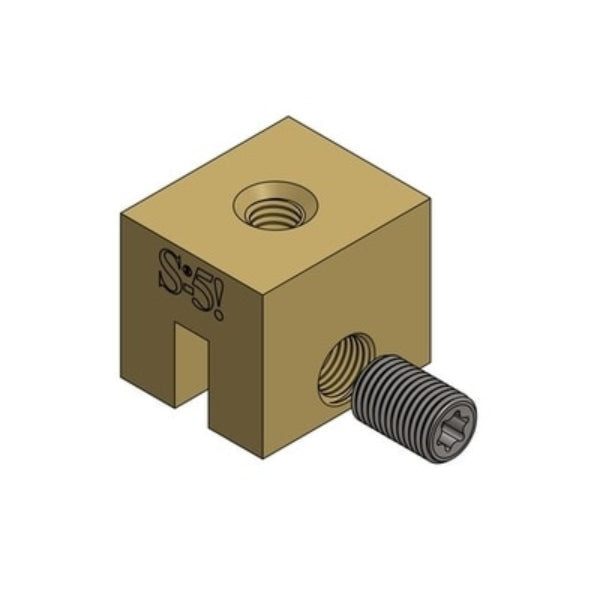

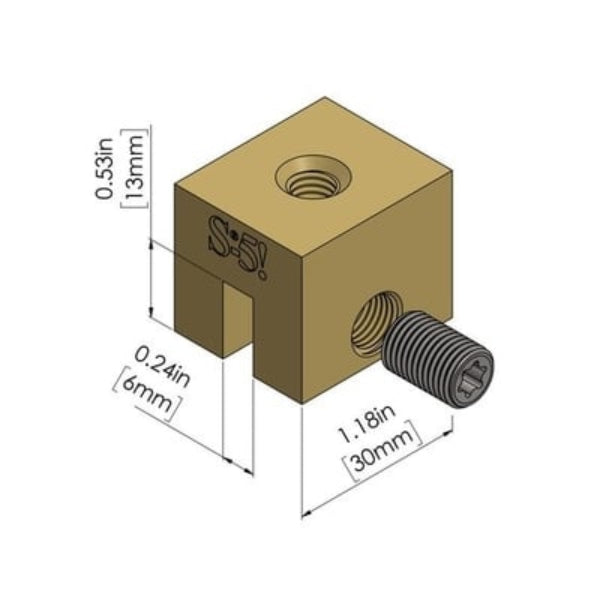

The S-5-B Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The Mini clamp is a bit shorter than the standard B with one setscrew rather than two.

Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

Choose the B to mount a variety of utilities, such as rooftop lighting, solar arrays, lightning protection and other appurtenances to your copper roof.

Specifications:

  • Designed for double-folded, copper standing seam roofs
  • Metallurgical compatibility with copper
  • Preserves aesthetics of copper roof
  • Light and medium-duty applications, such as utility mounting
  • Smaller than the standard S-5-B
  • One T-30 Torx setscrew (Torx bit tip provided)
  • No M8 Mini bolt included
    Application Light and medium-duty applications, such as utility mounting
    Brand S5
    Compatibility Metallurgical compatibility with copper
    Design Designed for double-folded, copper standing seam roofs
    Hardware One T-30 Torx setscrew (Torx bit tip provided) No M8 Mini bolt included
    Material type Brass

    For information on delivery costs and more click here.


    Description

    The S-5-B Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The Mini clamp is a bit shorter than the standard B with one setscrew rather than two.

    Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

    Choose the B to mount a variety of utilities, such as rooftop lighting, solar arrays, lightning protection and other appurtenances to your copper roof.

    Specifications:

    • Designed for double-folded, copper standing seam roofs
    • Metallurgical compatibility with copper
    • Preserves aesthetics of copper roof
    • Light and medium-duty applications, such as utility mounting
    • Smaller than the standard S-5-B
    • One T-30 Torx setscrew (Torx bit tip provided)
    • No M8 Mini bolt included


      Technical Specifications

      Application Light and medium-duty applications, such as utility mounting
      Brand S5
      Compatibility Metallurgical compatibility with copper
      Design Designed for double-folded, copper standing seam roofs
      Hardware One T-30 Torx setscrew (Torx bit tip provided) No M8 Mini bolt included
      Material type Brass
