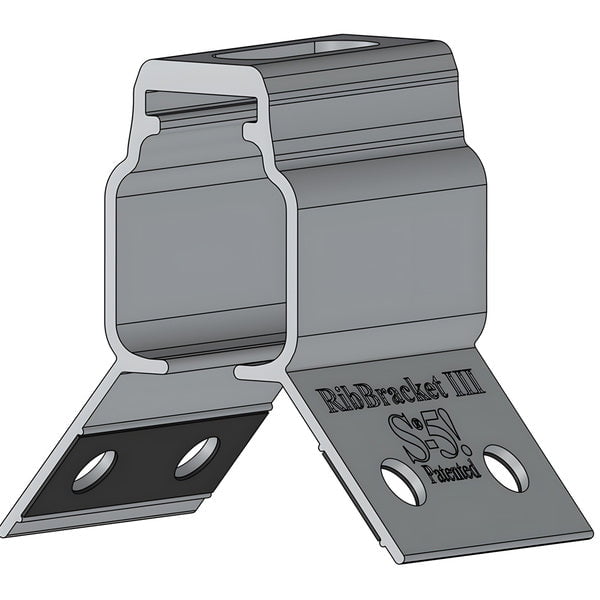

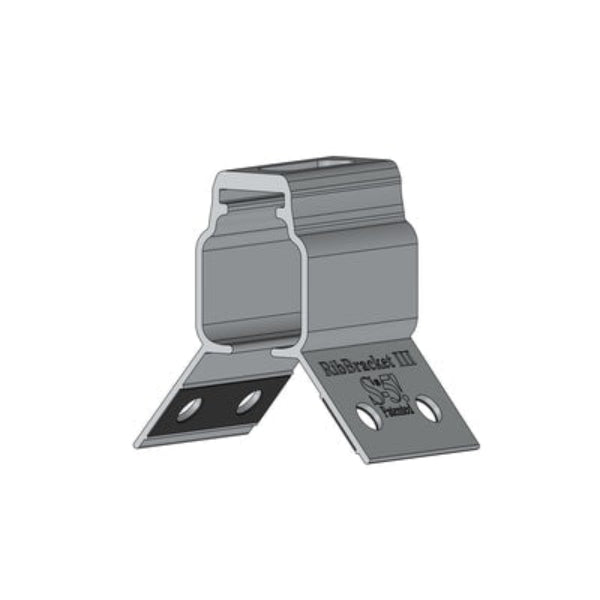

RibBracket III for Roof Profiles
RibBracket III for Roof Profiles
RibBracket III for Roof Profiles
  • Load image into Gallery viewer, RibBracket III for Roof Profiles
  • Load image into Gallery viewer, RibBracket III for Roof Profiles
  • Load image into Gallery viewer, RibBracket III for Roof Profiles
S5 METAL ROOFING

RibBracket III for Roof Profiles

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$4.96
Sale price
$4.96
Regular price
Sold out
Unit price
per
+
S5 METAL ROOFING

RibBracket III for Roof Profiles

Product Code: PBR340012501750

Designed for popular North American and Indian profiles, such as PBR Panel, R-Panel, Kirby Roof (KR), and similarly-dimensioned profiles.

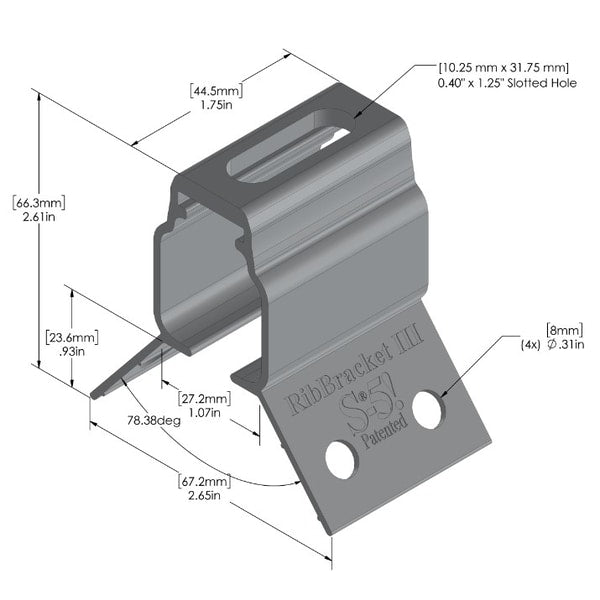

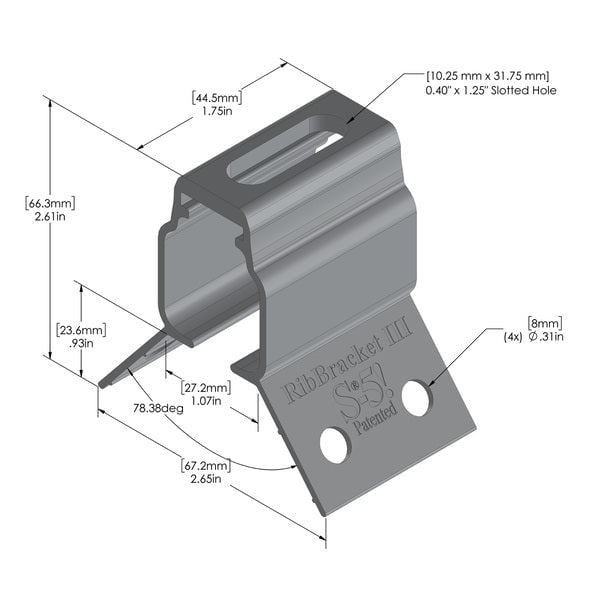

Compatible RibBracket III top rib dimension range:
1 in +/- to 1 ⅛ in (25 mm to 35 mm)

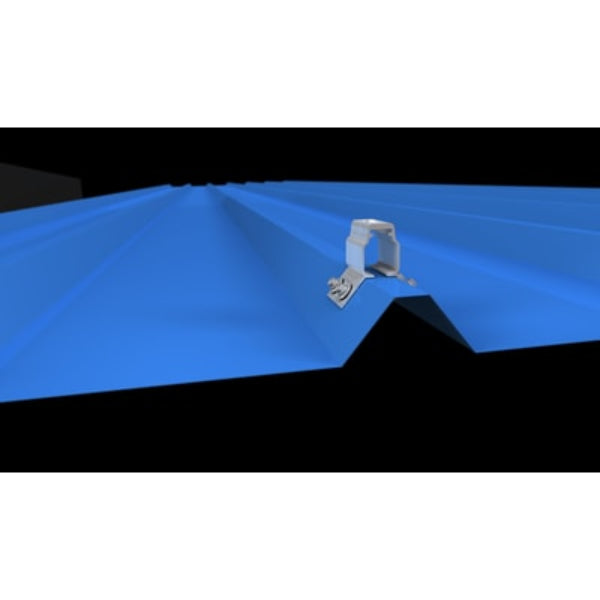

Installation is simple! The RibBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material. RibBracket is the perfect match for our S-5-PV Kit, or any other ancillary application, without worrying about cold bridging!

RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.



    Brand S5
    Design Designed for popular North American and Indian profiles, such as PBR Panel, R-Panel, Kirby Roof (KR), and similarly-dimensioned profiles

    For information on delivery costs and more click here.


    Description

    Designed for popular North American and Indian profiles, such as PBR Panel, R-Panel, Kirby Roof (KR), and similarly-dimensioned profiles.

    Compatible RibBracket III top rib dimension range:
    1 in +/- to 1 ⅛ in (25 mm to 35 mm)

    Installation is simple! The RibBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material. RibBracket is the perfect match for our S-5-PV Kit, or any other ancillary application, without worrying about cold bridging!

    RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.





      Technical Specifications

      Brand S5
      Design Designed for popular North American and Indian profiles, such as PBR Panel, R-Panel, Kirby Roof (KR), and similarly-dimensioned profiles
