Designed for popular African and Australian profiles, such as Lysaght Trimdek® 1015, Safintra Trimflute 1015, and similarly-dimensioned profiles.

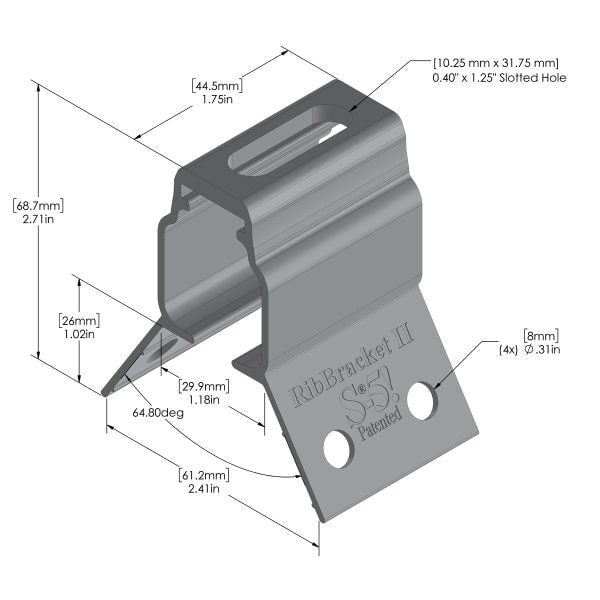

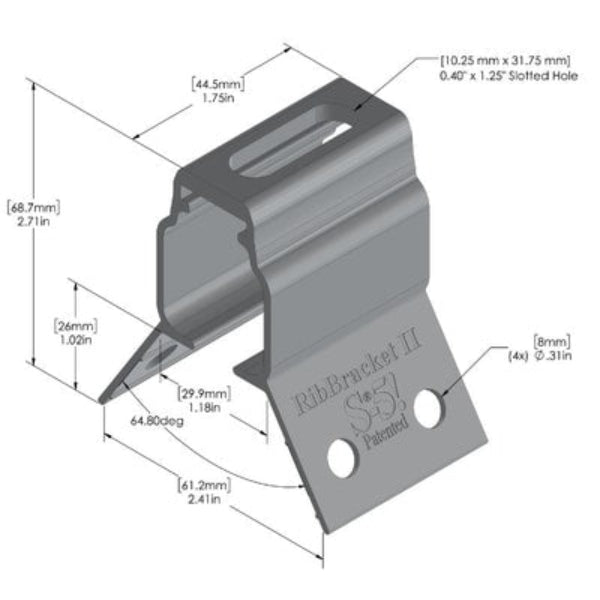

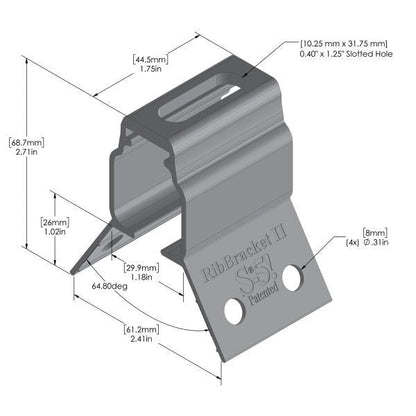

Compatible RibBracket II top rib dimension range:
1 in +/- to 1 ¼ in +/- (25 mm to 32 mm)

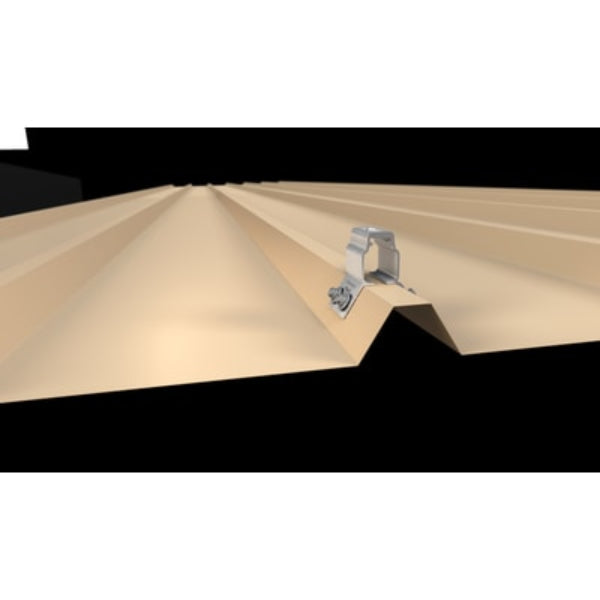

Installation is simple! The RibBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure through the pre-punched holes using the appropriate fasteners or Bulb-tite rivets for the supporting roof material. RibBracket is the perfect match for our S-5-PV Kit, or any other ancillary application, without worrying about cold bridging!
RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.
