Hunter Panels Xci FlexShield
Adding product to your cart
Est Delivery between
and
.
Please Note Orders Cancelled Within 7 Days Of Delivery Will Incur A $500 Fee
Xci FlexShield is a self-adhering flexible flashing membrane composed of a microcreped PP film facer with a butyl hybrid adhesive on a PET liner. Xci FlexShield is compatible with Hunter Xci polyiso products and the Xci AEGIS Wall System.
Features and Benefits
• Strong, flexible membrane seals tightly to most building materials and prevents water intrusion
• Butyl hybrid adhesive technology allows for excellent adhesion and flexibility in temperatures ranging from 10°F (-12°C) to 150°F (65°C)
• Does not contain asphaltic or bitumen materials that can cause staining and deformation
• Split release liner for easy installation
• Puncture resistant
• UV resistant up to 6 months
• No priming required
• Made in the USA
Installation Steps
• Ensure that the window sill has at least a slight slope toward the exterior
• Prepare the FlexShield flashing by measuring and cutting a length that is 12" longer than the window opening. FlexShield will run along the window sill and 6" up each jamb
• Remove the inner portion of the release liner from the back of the cut FlexShield piece and center the FlexShield in the opening

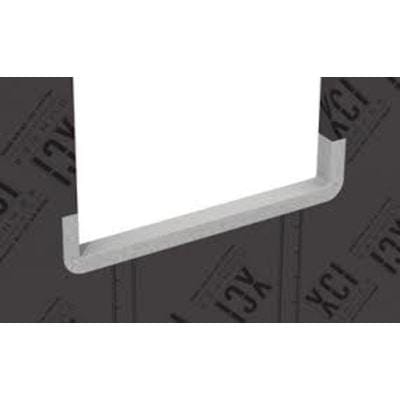

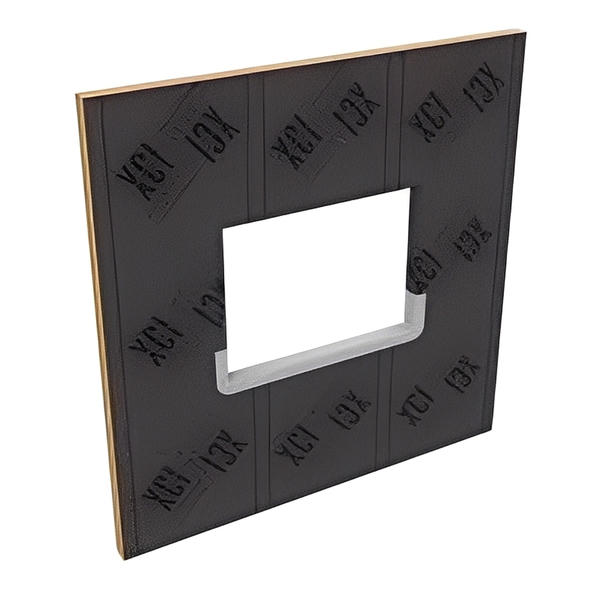

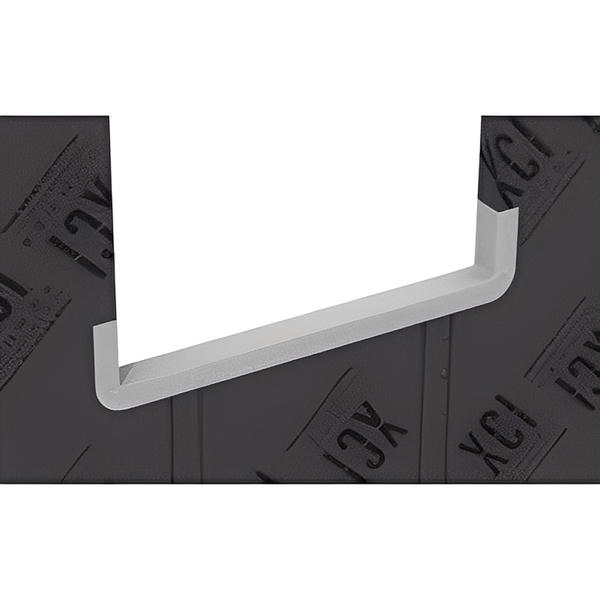

• Center and place FlexShield in window sill
• Starting in the center of the sill, begin to apply pressure to the FlexShield, moving outward toward each corner and then up each jamb. Use a J-roller across the surface
• Remove outer portion of release liner and fold FlexShield outward to wrap onto the exterior wall surface providing pressure while doing so
• Once secured, use a J-roller across the entire surface of the membrane to ensure proper overall adhesion
Sq Ft/Pack: 28.125
Application Temperature | 10°F to 150°F (-12°C to 66 °C) |
Brand | Hunter |
Length | 75' |
Material Type | Butyl |
Nail Sealability | AAMA 711 |
Product Type | Flashing |
Sealant Compatibility | AAMA711-08 level 3 |
Service Temperature | -30°F to 200°F (-34°C to 93°C) |
Sq Ft/Pack | 56.25 |
Thickness w/o liner | 65 mils |
UV Resistance | No degradation, No loss of peel adhesion |
Water Immersion | No degradation or loss of peel adhesion |
Width | 9" |
WVTR | < 0.1 perms |
