Hunter Panels XCI Concast 4ft x 8ft
HUNTER PANELS

Hunter Panels XCI Concast 4ft x 8ft - All Sizes

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
Regular price
$1,501.67
Sale price
$1,501.67
Regular price
Sold out
Unit price
per
+
HUNTER PANELS

Hunter Panels XCI Concast 4ft x 8ft - All Sizes

Product Code: HXCICONCAST1

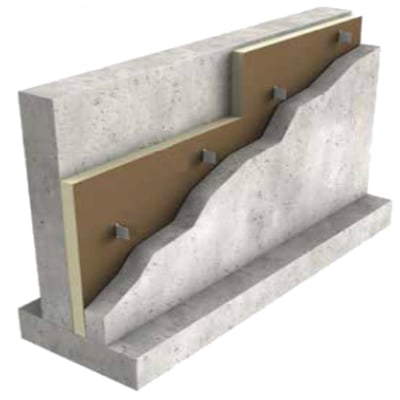

Hunter Panels Xci ConCast is a non-structural, energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core manufactured on-line to tri-laminate (poly/kraft/foil) facers on both sides. It is designed for use in concrete wall panels as the core insulation layer between two layers of concrete held together by connectors. This material would be suitable for precast, tilt-up or poured in place “sandwich” panels.

Thickness R-Value Sq Ft/Pallet Sheets Per Pallet
1" 6.5 1536
48
1.5" 10
1024
32
2" 13.3
768
24
2.5" 17
608
19
3" 20.3 512
16
3.5" 24
416
13

Features and Benefits

  • Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
  • Facing material has no exposed metal, eliminating risk of corrosion or negative chemical reaction with the concrete used in such application
  • Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
  • Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
  • Lightweight yet durable, easy to handle, cuts with a knife or saw
Brand Hunter Panels
Compressive strength 25 psi min. (138 kPa)
Flame spread index (foam core) <75
Product length 96"
Product type Rigid Board
Product width 48"
Recycled content 9% pre-consumer
Smoke developed (foam core) <450

For information on delivery costs and more click here.


Description

Hunter Panels Xci ConCast is a non-structural, energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core manufactured on-line to tri-laminate (poly/kraft/foil) facers on both sides. It is designed for use in concrete wall panels as the core insulation layer between two layers of concrete held together by connectors. This material would be suitable for precast, tilt-up or poured in place “sandwich” panels.

Thickness R-Value Sq Ft/Pallet Sheets Per Pallet
1" 6.5 1536
48
1.5" 10
1024
32
2" 13.3
768
24
2.5" 17
608
19
3" 20.3 512
16
3.5" 24
416
13

Features and Benefits

  • Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
  • Facing material has no exposed metal, eliminating risk of corrosion or negative chemical reaction with the concrete used in such application
  • Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
  • Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
  • Lightweight yet durable, easy to handle, cuts with a knife or saw


Technical Specifications

Brand Hunter Panels
Compressive strength 25 psi min. (138 kPa)
Flame spread index (foam core) <75
Product length 96"
Product type Rigid Board
Product width 48"
Recycled content 9% pre-consumer
Smoke developed (foam core) <450
