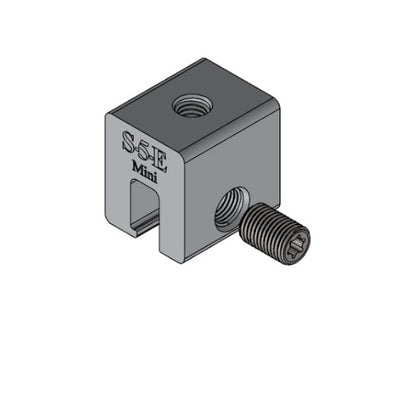

S-5-E Mini Metal Roof Clamps

The S-5-E Mini is a bit shorter than the S-5-E and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment

The E Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

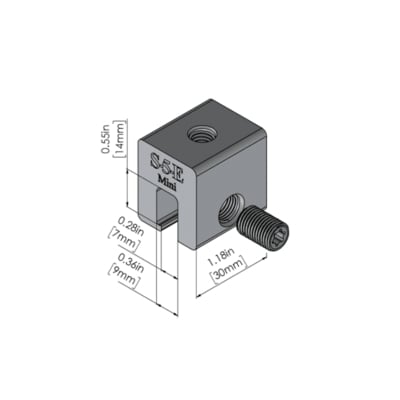

Specifications:

• Comparable strength to S-5-U & V Minis but at a lower cost
• Compatible with Butler’s MR-24® and other double-folded, standing seam metal roof
• Light and medium-duty applications, such as utility mounting
• Ideal for solar mounting applications
• Smaller than the standard S-5-E
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
