Kingspan GreenGuard GG25-LG XPS 4ft x 8ft Insulation Board - All Sizes
Kingspan GreenGuard GG25-LG XPS 4ft x 8ft Insulation Board - All Sizes
SKU:M48056LG-FP
Est Delivery between 6th Feb and
12th Feb.
How much will I need?
How much will I need?
We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project
Couldn't load pickup availability
Product Information

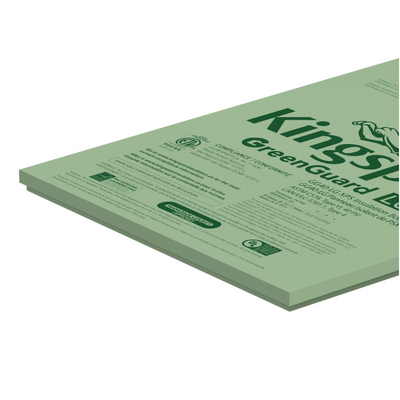

Kingspan GreenGuard GG25-LG XPS Insulation Board is an ideal exterior insulation, meeting your needs for multiple applications. Its extruded polystyrene (XPS) construction provides superior moisture resistance. And since it does not absorb moisture, it retains its insulating properties over time.

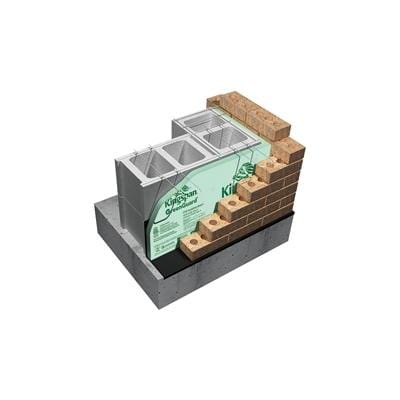

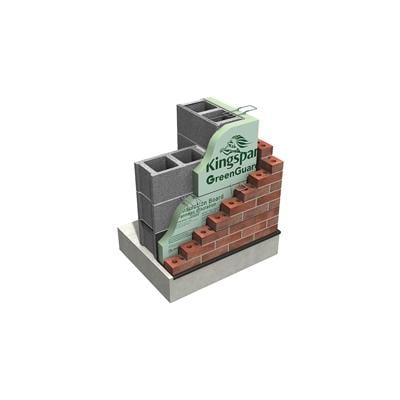

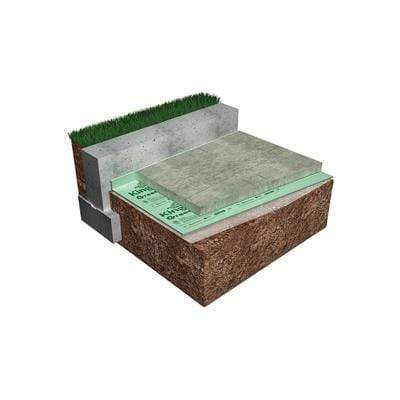

With an R-Value of 5.0 per inch of thickness, the board increases the energy efficiency of your structures. Plus it’s lightweight, easy to handle, and easy to cut with a knife. Use this insulation for below slab, cavity wall, and foundation applications. It meets and exceeds all Type IV and Type X specifications.
| Pallet Size | Board Size | Boards Per Pallet | Coverage Per Pallet |
|---|---|---|---|
| Full Pallet | 0.56" x 4' x 8' | 160 | 5120 Sq/Ft |
| Full Pallet | 1" x 4' x 8' | 96 | 3072 Sq/Ft |
| Full Pallet | 1.5" x 4' x 8' | 64 | 2048Sq/Ft |
| Full Pallet | 2" x 4' x 8' | 48 | 1536 Sq/Ft |
| Full Pallet | 3" x 4' x 8' | 32 | 1024 Sq/Ft |
| Full Pallet | 4" x 4' x 8' | 24 | 768 Sq/Ft |
Features & Properties
● R-value of 5.0 per inch of thickness
● Retains insulating properties over time
● Maintains integrity
● Lightweight, durable...easy to use

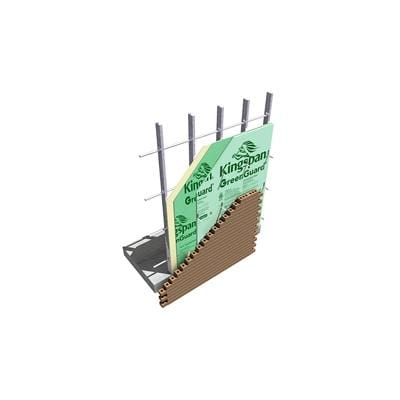

● Continuous Insulation (Ci) for walls

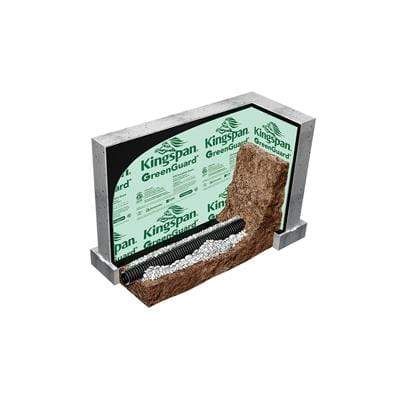

● Insulates foundation exteriors and protects against backfill damage
| Property | Test Method | Result |
| Nominal Thickness (in) | 1*, 1 1/2, 2, 2 1/2, 3 | |
| Nominal Board Width | 4ft | |
| Nominal Board Length | 8ft | |
| Edge Profile | Square or Score | |
| Property Type | ASTM C578 | IV |
| Compressive Strength, Min. (psi@ 10% deflection) |
ASTM D1621 | 25 |
| Water Absorption, Max. (% by volume) |
ASTM C272 | 0.3 |
| Density, Min. (lb/ft³) |
ASTM C303 | 1.45 |
| Water Vapor Permeance, Max. (perm) |
ASTM E 96 (Dessicant Method) |
1.5 |
| Service Temperature, Max (°F) | 165 | |
| Thermal | ||
| Thermal Resistance, R-value
(°F.ft².hr / Btu per in thick) |
ASTM C518 (@75°F Mean Temperature) |
5.0 |
| Thermal Conductivity, k-value (Btu.in / hr.ft.ºF) |
ASTM C518 (@75°F Mean Temperature) |
0.2 |
| Fire & Smoke | ||
| Flame Spread Smoke Developed |
ASTM E84 / UL723 | 25 (Class A) 140 |
Technical Specifications
| Brand | Kingspan |
| Compressive strength | 25psi @10% deflection |
| Material type | XPS (Extruded Polystyrene) |
| Product density | 1.45 lb/ft3 |
| Product length | 8ft |
| Product type | Rigid Board |
| Product width | 4ft |
| R value | 5.0 |
| Thermal conductivity | 0.2 Btu.in/hr.ft2.ºF |
| Water absorption | 0.3% by volume |
| Water vapor permeance | 1.5 perm |
