Fakro

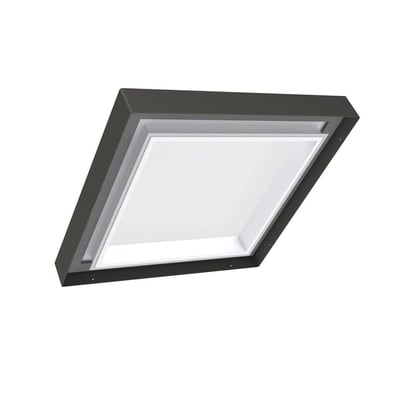

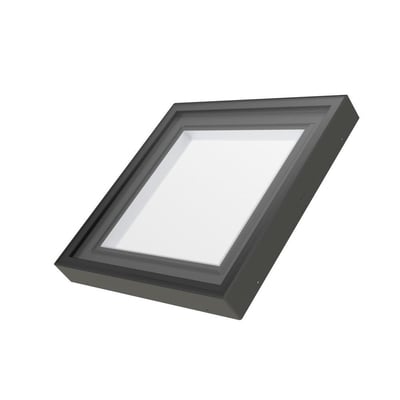

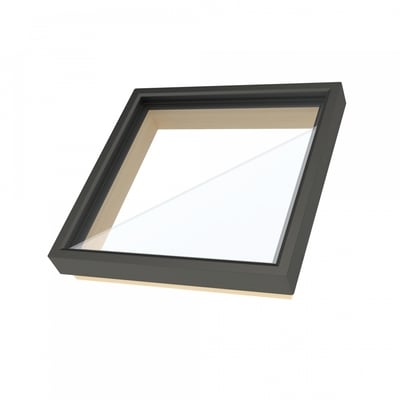

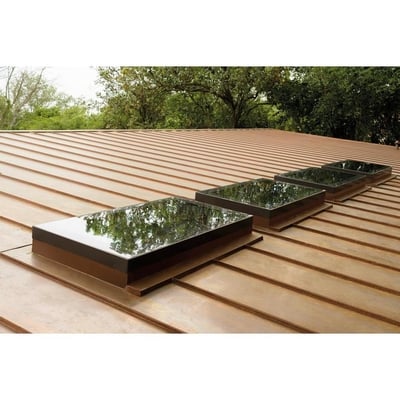

Fixed Curb-Mounted Skylight with Laminated Low-E366 Glass
Fixed Curb-Mounted Skylight with Laminated Low-E366 Glass
SKU:FXC 1430-L
Est Delivery between 6th Feb and
12th Feb.
How much will I need?
We recommend adding 10% of additional product to the calculation to account for errors, damages, and obstacles in your project
Couldn't load pickup availability


Product Information
Inside Curb | Flashing To Use |
Outside Curb |
---|---|---|
14.5 In x 30.5 In | 14/30 [Tile Roof] [Shingle Roof] | 17.5 In x 33.5 In |
14.5 In x 46.5 In | 14/46 [Tile Roof] [Shingle Roof] | 17.5 In x 49.5 In |
22.5 In x 22.5 In | 22/22 [Tile Roof] [Shingle Roof] | 25.5 In x 25.5 In |
22.5 In x 30.5 In | 22/30 [Tile Roof] [Shingle Roof] | 25.5 In x 33.5 In |
22.5 In x 34.5 In | 22/34 [Tile Roof] [Shingle Roof] | 25.5 In x 37.5 In |
22.5 In x 46.5 In | 22/46 [Tile Roof] [Shingle Roof] | 25.5 In x 49.5 In |
22.5 In x 70.5 In | 22/70 [Tile Roof] [Shingle Roof] | 25.5 In x 73.5 In |
30.5 In x 30.5 In | 30/30 [Tile Roof] [Shingle Roof] | 33.5 In x 33.5 In |
30.5 In x 46.5 In | 30/46 [Tile Roof] [Shingle Roof] | 33.5 In x 49.5 In |
34.5 In x 34.5 In | 34/34 [Tile Roof] [Shingle Roof] | 37.5 In x 37.5 In |
34.5 In x 46.5 In | 34/46 [Tile Roof] [Shingle Roof] | 37.5 In x 49.5 In |
46.5 In x 46.5 In | 46/46 [Tile Roof] [Shingle Roof] | 49.5 In x 49.5 In |
Premium Characteristics:
- Unique infinity glass design
- Suitable for flat and sloped roofs from 0 to 60 degrees
- Low-E, UV filtering glass with low solar heat gain coefficient
- Installs in horizontal or vertical orientation (360 degree rotation)
- Double glazing unit filled with argon gas
- Condensation channels trap moisture and drains it outside
- Flat modern construction allows for easy water drainage
- White finished, internal PVC frame overlaps drywall allowing for quick and esthetic shaft finish
- Internal and external blinds installation ready (no additional frames necessary)
- EL-C step or EH-C high profile flashing available
- Custom colors available
Standard Characteristics:
- Easy and simple installation
- Suitable for roof pitches between 0-60 degrees
- Low-emission and heat-reflecting double glazing with Argon gas
- Warm spacer increases condensation resistance
- 360 turn-around installation
- Available with EL-C or EL-H flashing
- A channel built into the inner frame of the skylight collects moisture and drains it to the outside
- Suitable for curbs made of 2''x4'', 2'x6'' or 2''x8''
FAKRO RETURN POLICY
Should you wish to make a return please contact sales@4us-group.com We are happy to process a return or exchange a product within 30 days from date of delivery. Please note that the original cost for shipping (if applicable) is non refundable and you must cover the cost of return postage, there will also be a 30% restocking fee charged which will be deducted from your refund.
All products should be inspected at delivery and any damaged or missing parts must be noted on the delivery papers prior to signing. Should you find any damages, this must also be noted on the delivery papers and photos taken and notify us ASAP.
In the case you are not present to receive the delivery, all products must be inspected. Should you find any damages, please take photos and notify us within 24 hours from date of delivery by emailing us at the above email address.
Technical Specifications
Brand | Fakro |
Cladding type | Aluminum |
Exterior color | Black |
Frame material | PVC |
Glazing | Flat Glass |
Glazing type | Laminated |
Interior color | White |
Manufacturer warranty | 10-year limited warranty |
Maximum roof pitch | 60° |
Minimum roof pitch | 0° |
Mounting style | Curb Mount |
Operator | Fixed |
