5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/4 In Anchorage
5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/6 In Anchorage
5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/12 In Anchorage
  • Load image into Gallery viewer, 5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/4 In Anchorage
  • Load image into Gallery viewer, 5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/6 In Anchorage
  • Load image into Gallery viewer, 5K Drop Through - 8.5 ft Round Plate - All Sizes 8.5 ft w/12 In Anchorage
MALTA DYNAMICS

5K Drop Through - Round Plate - All Sizes

The option you have currently selected is a call to inquire option. Please call us on 281-657-1443 for more information or select an alternative option.
$139.49
$139.49
Sold out
–
+
Call to inquire
MALTA DYNAMICS

5K Drop Through - Round Plate - All Sizes

Product Code: A6200

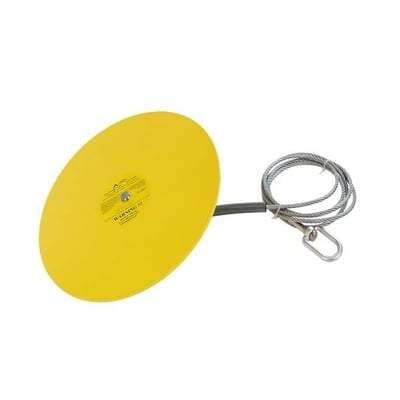

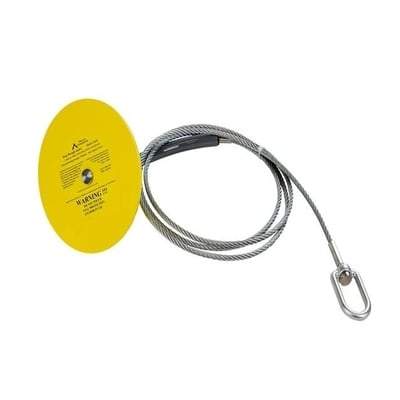

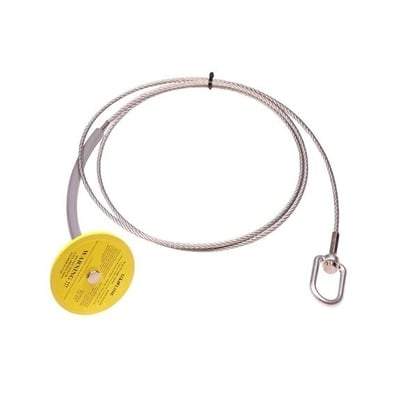

The 5K Drop Through Anchor - 8.5 ft is a 5,000-pound capacity overhead anchorage connector used with temporary roof fall protection systems. It is designed to drop through an opening in any 1-3/4 inch by 2-inch substrate, provided it is compliant with all applicable fall protection requirements. This drop-through anchor is compliant with all ANSI Z359.1-2007. Roof anchors for fall protection are the best way to keep your workers safe.

Key Features:

  • 8.5 ft long wire
  • Minimum Breaking Strength: 5,000 lbs.
  • Meets ANSI Z359.1-2007 and ANSI A10.32-12
  • Application: Concrete Floors, Steel Girders and Steel Grates
  • Compliance: ANSI Z359.1-2007, OSHA 1926.502 and OSHA 1910.66
  • Application: Concrete Floors, Steel Girders, Steel Grates
Brand Malta Dynamics
Breaking strength 5,000 lbs
Compliant with OSHA 1926.502 and OSHA 1910.66
Length 8.5 ft
Suitable application Concrete Floors, Steel Girders and Steel Grates
Weight A6200 - 1.8 lbs, A6201 - 2.7 lbs, A6202 - 8.9 lbs

For information on delivery costs and more click here.


Description

The 5K Drop Through Anchor - 8.5 ft is a 5,000-pound capacity overhead anchorage connector used with temporary roof fall protection systems. It is designed to drop through an opening in any 1-3/4 inch by 2-inch substrate, provided it is compliant with all applicable fall protection requirements. This drop-through anchor is compliant with all ANSI Z359.1-2007. Roof anchors for fall protection are the best way to keep your workers safe.

Key Features:

  • 8.5 ft long wire
  • Minimum Breaking Strength: 5,000 lbs.
  • Meets ANSI Z359.1-2007 and ANSI A10.32-12
  • Application: Concrete Floors, Steel Girders and Steel Grates
  • Compliance: ANSI Z359.1-2007, OSHA 1926.502 and OSHA 1910.66
  • Application: Concrete Floors, Steel Girders, Steel Grates


Technical Specifications

Brand Malta Dynamics
Breaking strength 5,000 lbs
Compliant with OSHA 1926.502 and OSHA 1910.66
Length 8.5 ft
Suitable application Concrete Floors, Steel Girders and Steel Grates
Weight A6200 - 1.8 lbs, A6201 - 2.7 lbs, A6202 - 8.9 lbs

Datasheets

► 5K Drop Through Round Plate
